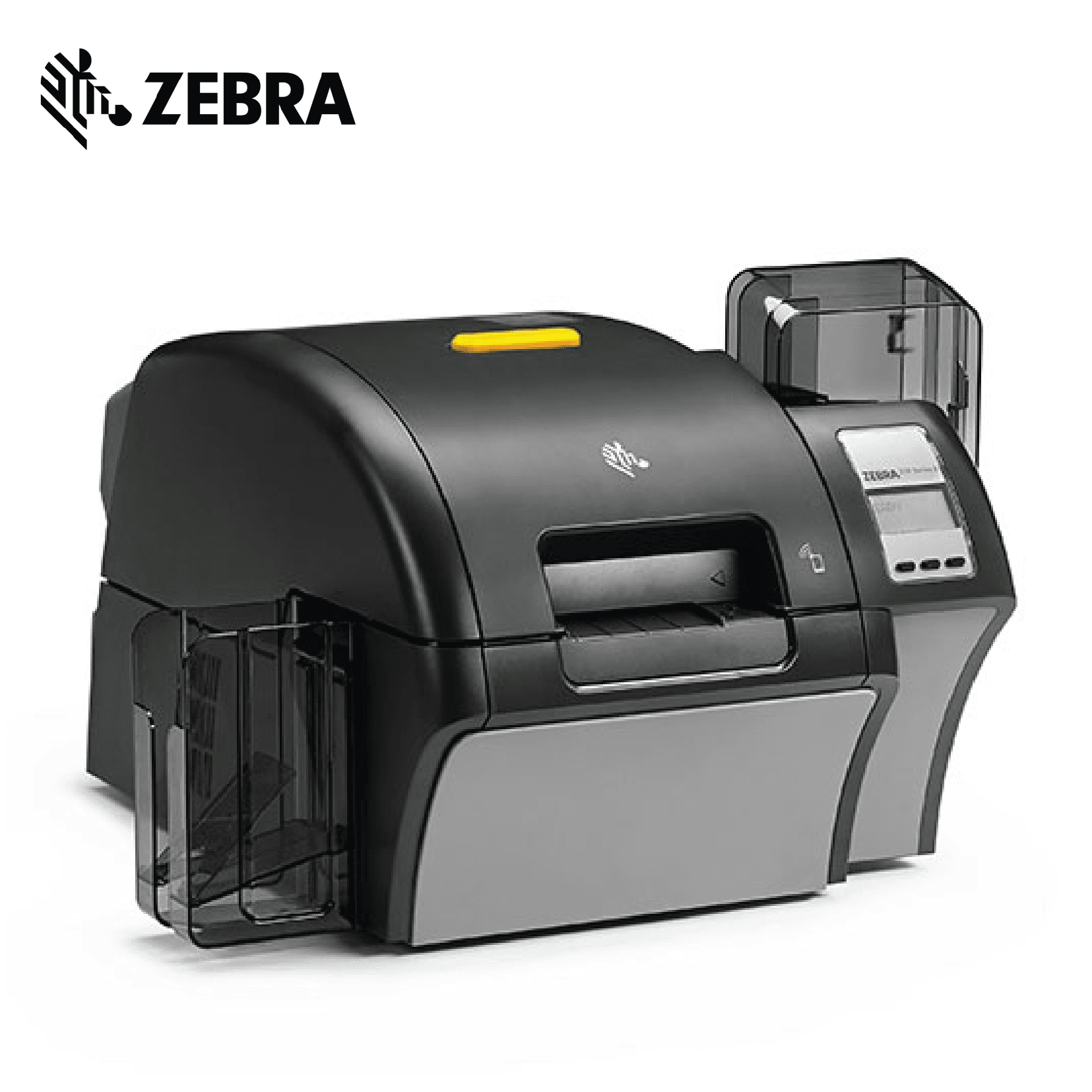

Zebra ZXP Series 9 Retransfer Card Printer

Engineered to meet your high-security application needs, the ZXP Series 9 ™ lets you produce photo-quality cards quickly and reliably. Ideal for printing photos and graphics, the dependable ZXP Series 9 printer incorporates Zebra’s colour Predictive Technology, featuring algorithms that constantly monitor and instantaneously adapt printer settings to automatically produce the highest print quality.

Description

As a retransfer printer, it enables you to produce extremely durable, true to edge-to-edge cards – even on uneven card surfaces such as smart cards.

Featuring Zebra’s patented waste-free laminate design, the ZXP Series 9 provides an extremely low cost-per-card and eliminates more than 50% of the typical waste.

STANDARD FEATURES

  • USB and Ethernet connectivity
  • Single-card feed capability
  • 150 card capacity feeder (30 mil)
  • 15 card capacity reject hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • i Series™ intelligent media technology
  • Auto-calibration of media

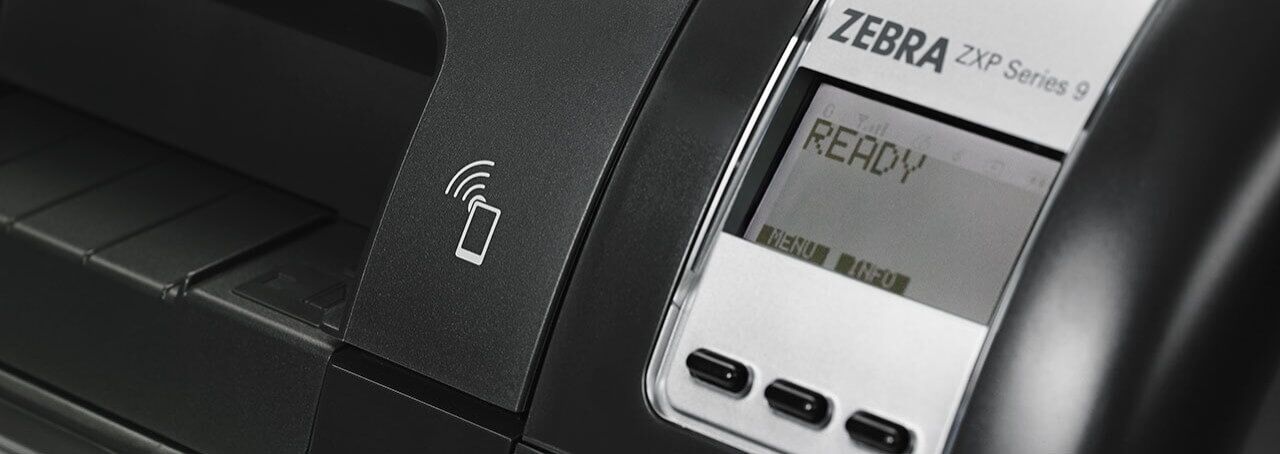

  • 21-character, 6 line LCD operator display
  • 304 dpi (12.0 dots/mm) print resolution
  • 64 MB memory standard
  • Lifetime warranty on printhead
  • 2-year limited warranty on printer
  • Microsoft® Windows certified drivers
  • Kensington physical lock capable

PRINTING

  • Dye diffusion retransfer
  • Full color or monochrome retransfer printing
  • Single- and dual-sided printing
  • Max print speed single-side 190 cph*
  • Max print speed dual-sided 180 cph*
  • User-selectable print modes: standard and fine
  • Photo-quality images
  • Over-the-edge printing on standard CR80 media

OPTIONS AND ACCESSORIES

  • Laminator—single-sided and  dual-sided
  • Lockable enclosure/card feeder
  • Zebra OneCare service programs
  • 11b/g wireless connectivity
  • Card input hopper (150 cards 30 mil)

ENCODING OPTIONS & SPECIFICATIONS

  • ISO 7816 Smart Card Contact Station for third-party external contact encoders
  • Magnetic stripe encoder—AAMVA and ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity)
  • Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless, ISO 7816 Contact Encoder PC/SC compliance (supported over USB and Ethernet)
  • Encoding over Ethernet

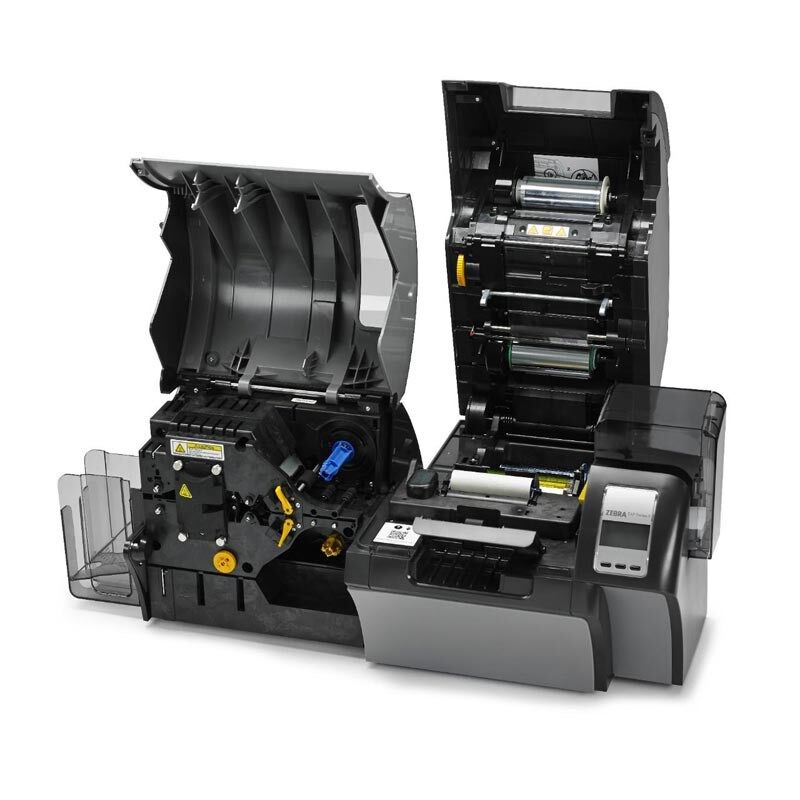

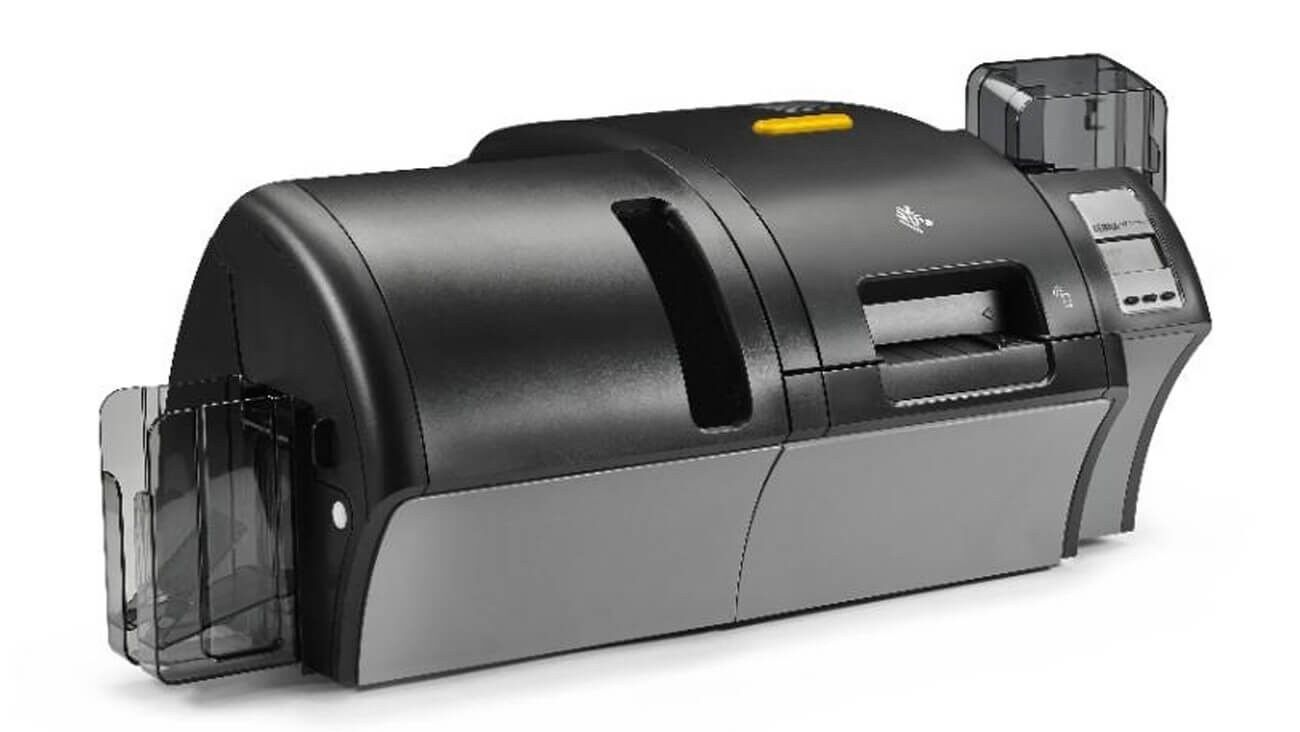

LAMINATOR SPECIFICATIONS

  • Single-or dual-sided lamination option (with dual-sided printer only)
  • 180 cards per hour dual-sided printing and dual-sided lamination
  • GSA FIPS 201 approved (dual-sided lamination)
  • Uses Zebra True Secure i Series laminates only
  • Laminate for the top and bottom sold separately
  • Custom-coded laminates  available
  • Custom holographic laminates available

IDEAL FOR:

Government

  • Government IDs
  • Government-issued IDs and Cards
  • ID and Access Control

Education

  • Student and Staff ID and Access Control

Retail & Hospitality

  • ID and Access Control
  • Personalized Gift, Membership and Loyalty Cards
  • Smart Cards in Travel, Gaming and Entertainment

Transportation & Logistics

  • ID and Access Control

Manufacturing

  • ID and Access Control

Service Bureaus

  • Employee, Student IDs
  • Personalized Gift, Membership and Loyalty Cards
  • Other Customized Cards
