Standard Features
- 300 dpi/11.8 dots per mm print resolution
- USB 2.0 and Ethernet 10/100 connectivity
- Microsoft® Windows-certified drivers
- 10-50 mil auto-adjusting card feeder
- 200-card capacity feeder (30 mil)
- 15-card reject hopper (30 mil)
- 100-card output hopper (30 mil)
- Manual card feed capability

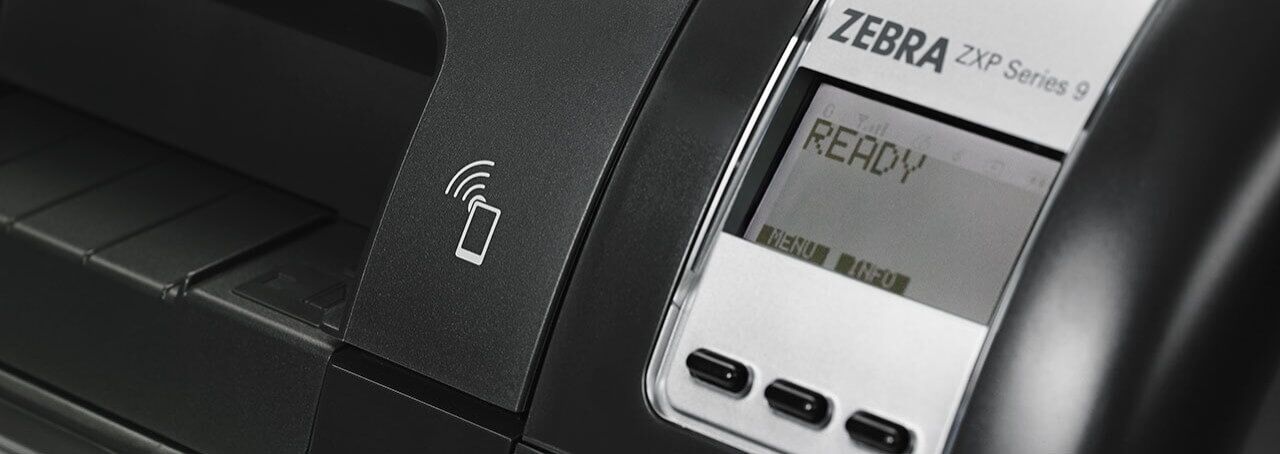

- 21-character x 6-line LCD operator display with configurable soft keys
- Kensington® physical lock slot
- Two-year unlimited warranty on printer and printhead
Optional Features

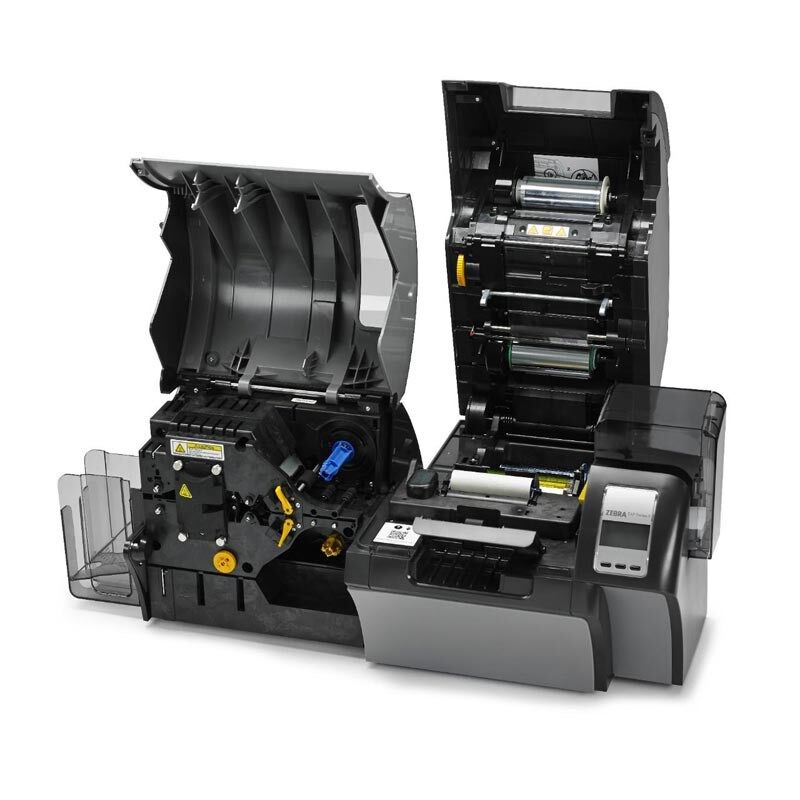

- Single and dual-sided laminator
- Lockable enclosures and card feeder
- Extended product warranty programs
Encoding Options
- High and low coercivity magnetic stripe encoder
- Combined MIFARE® ISO 14443 A & B contactless and ISO 7816 Contact Encoder
- ISO 7816 Smart Card Contact Station for third party external contact encoders
Printing and laminating specifications
- Color dye sublimation or monochrome thermal transfer printing
- Single- and dual-sided printing
- Edge-to-edge printing on standard CR-80 media
- Simultaneous printing, encoding, and laminating capability
- One-pass single- and dual-sided wasteless lamination
- 1375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
- 300 cards/hour full-color YMCKO single-sided printing
- 225 cards/hour full-color YMCKOK dual-sided printing
- 270 cards/hour full-color YMCK single-sided printing with lamination
- 200 cards/hour full-color YMCKK dual-sided printing with lamination
Card specifications/compatibility
- Card Thickness: 10 – 50 mil (0.25 – 1.27mm)
- Card Thickness for lamination: 30 mil (0.76 mm) only
- Card Size: CR-80, ISO 7810 format, Type ID-1
- Card Material: PVC and composite, PET, PET-G, PET-F, and Teslin® composite
- Technology Cards: contact and contactless smart cards
- Specialty cards: adhesive backed, transparent (IR-blocked), signature panel, and select key-tag types
True Colours® ix Series™ ribbons:
- YMCKO: 250 or 750 images/roll
- YMCKOK: 250 or 750 images/roll
- YMCUvK: 750 images/roll
- Black monochrome: 2500 or 5000 images/roll
- White monochrome: 2500 images/roll
True Secure™ i series laminates:
- Linerless waste-free 1.0 mil top and bottom laminate: 750 images/roll
- Laminate types: clear, magnetic stripe, magnetic stripe with signature panel, smart card, and holographic wallpaper designs
- Custom laminates with registered or wallpaper holographic images available
- Card cleaning rollers are included with each ribbon carton
- Specially designed cleaning supplies simplify preventative maintenance
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
