2D Scanner, Barcode Scanners, Cordless Scanner

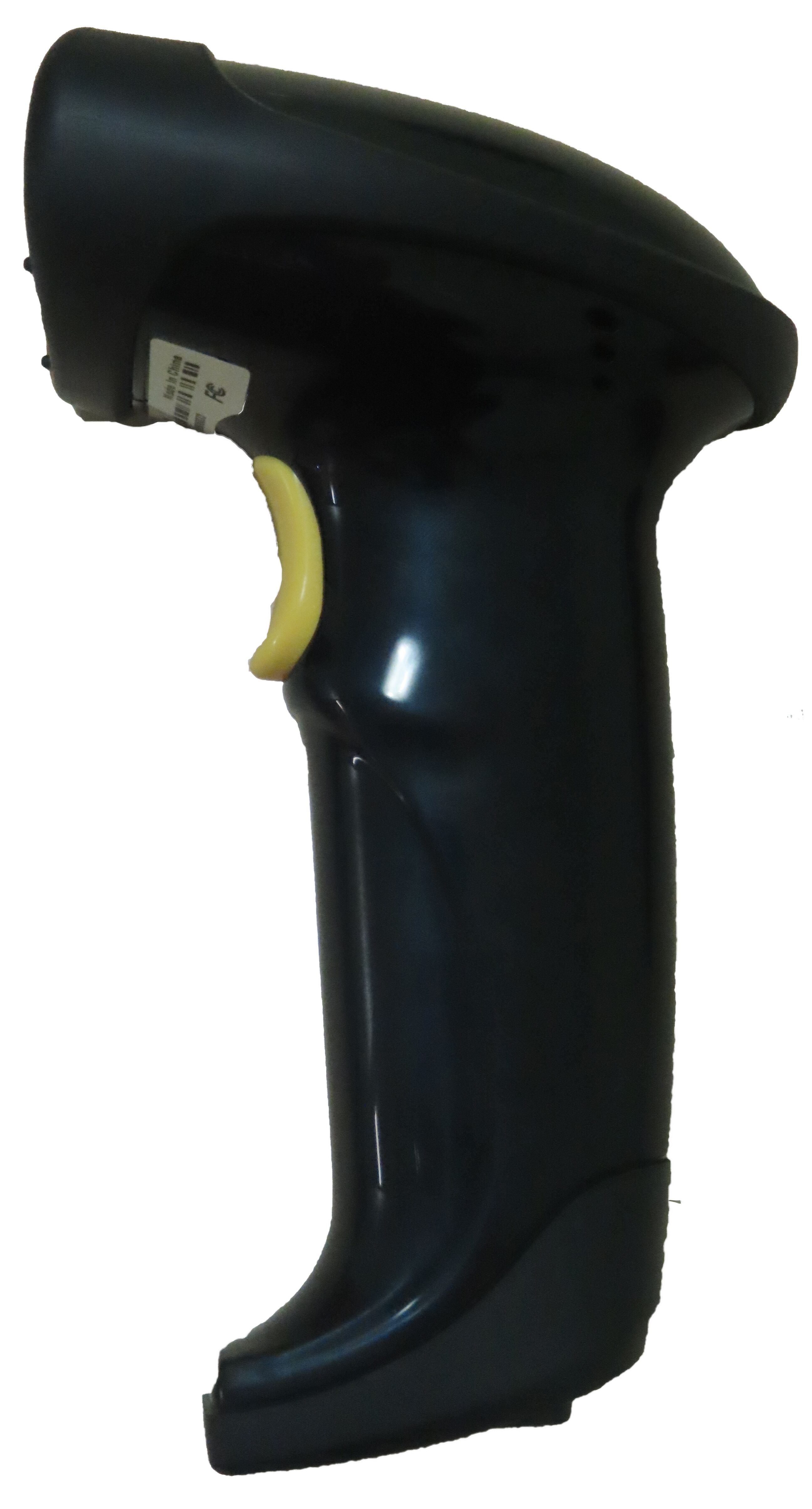

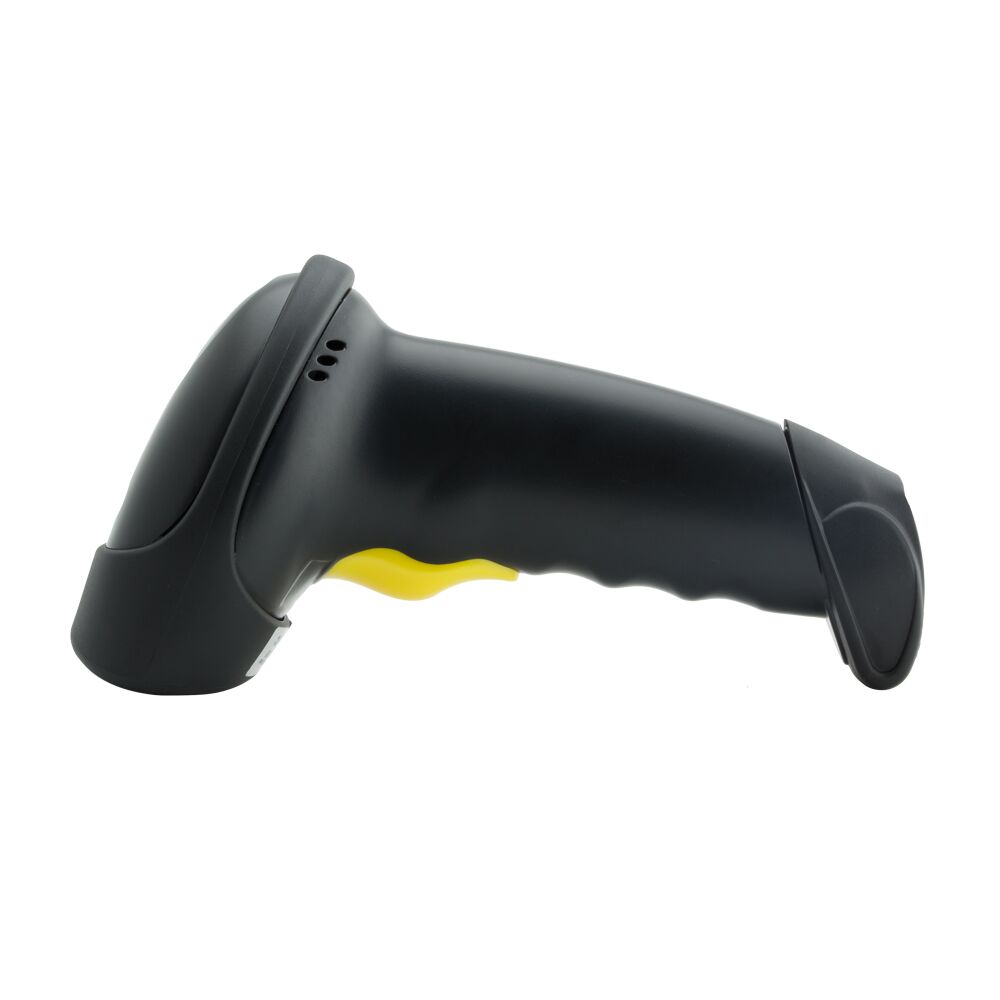

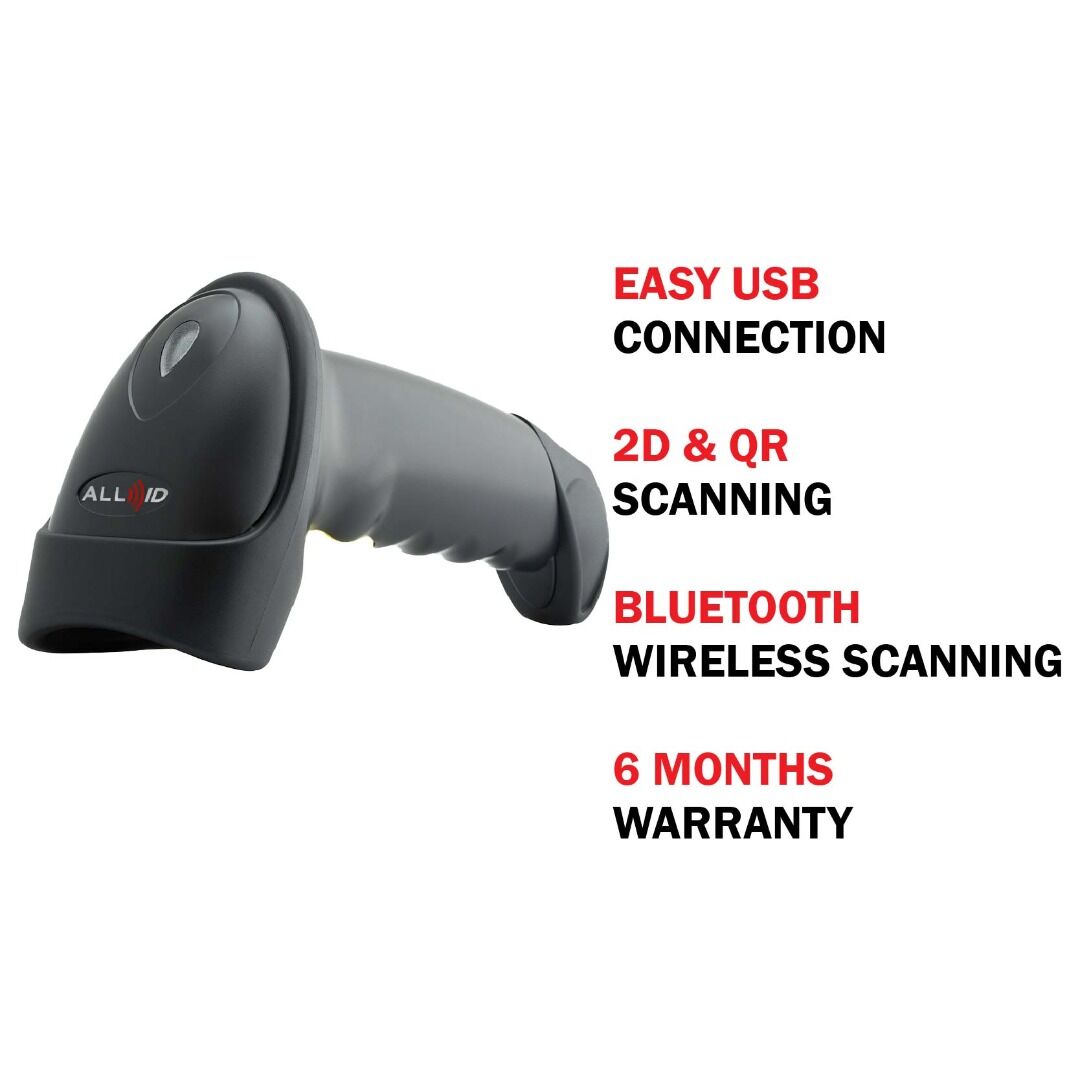

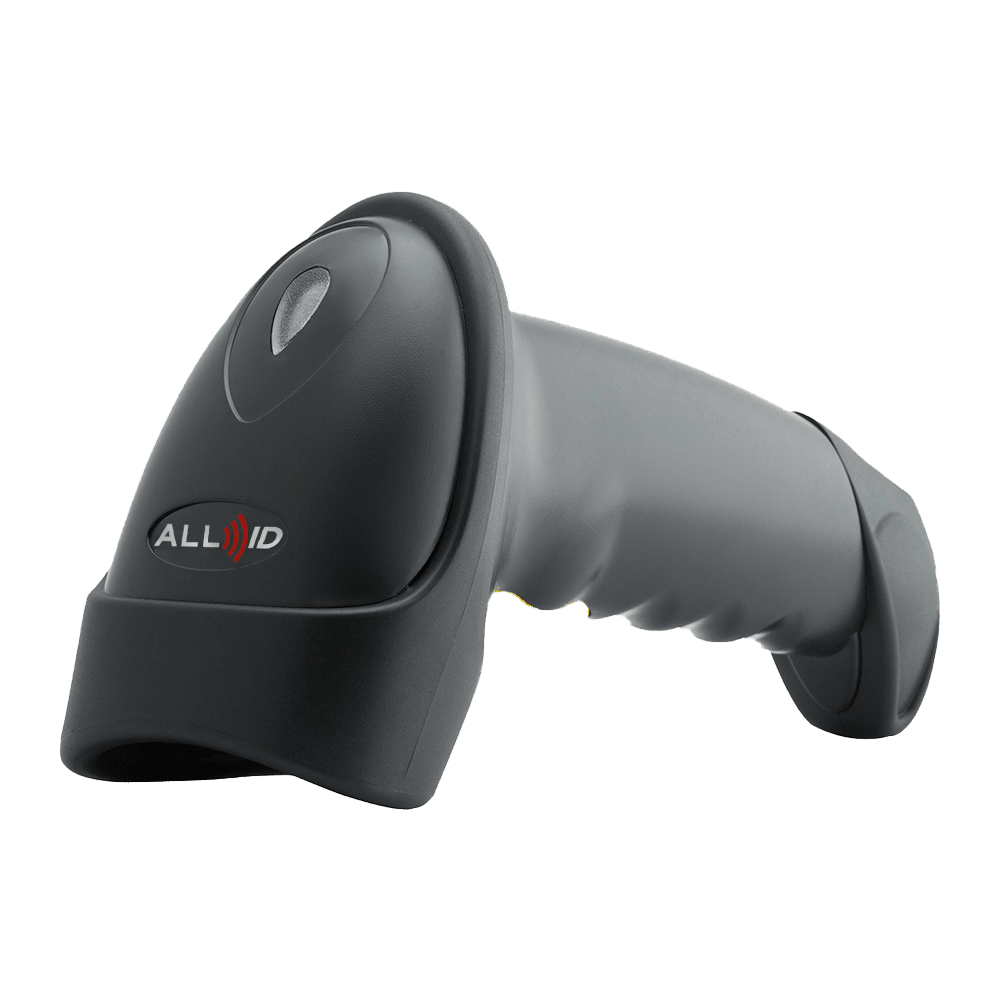

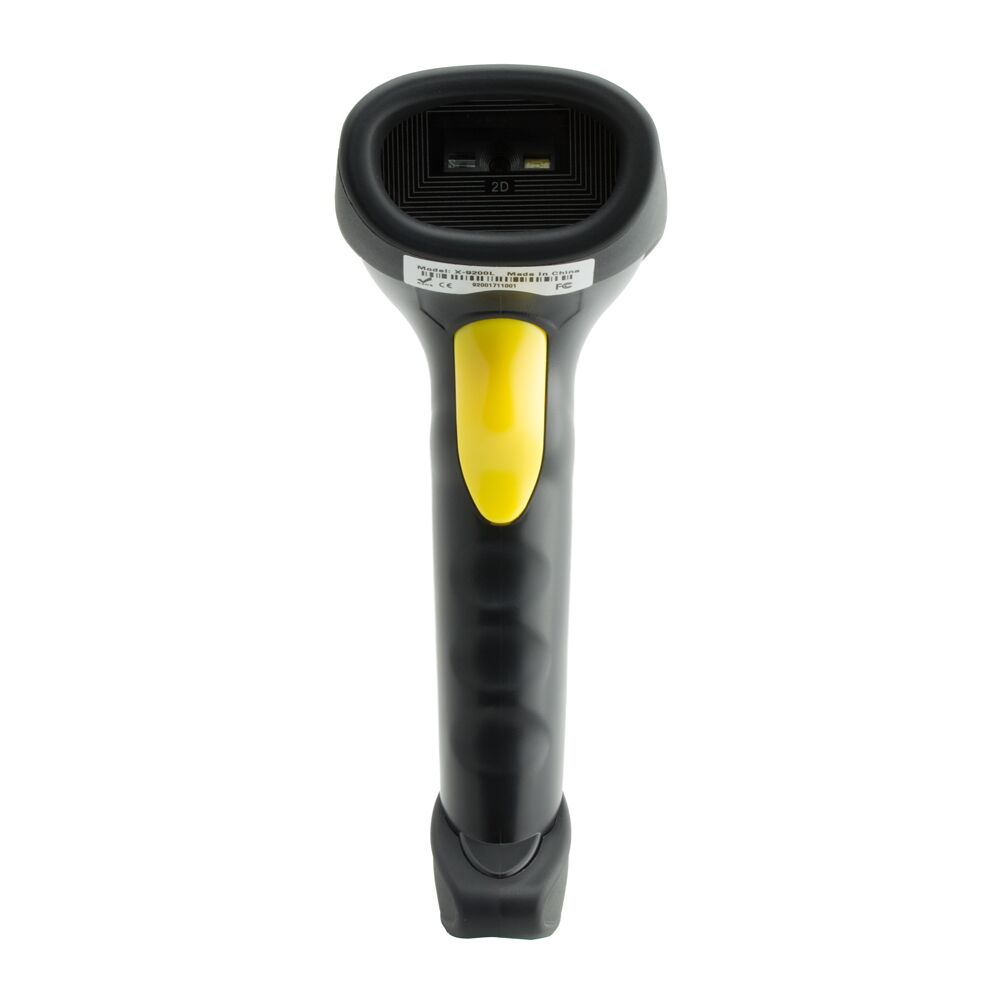

X-9201B 2D Wireless Barcode Scanner
Availability:
1 in stock
6 months warranty *no on-site support (customer need to send to us for technical support)
| Weight | 0.8 kg |
|---|
| Model | X-9201B |
| Item | Bluetooth 2D Barcode Scanner |
| Physical Parameter | |
| Material | ABS+PVC+PC |
| Power Supply | Charge 5V ±5% ；3.7V 2000mAH 18650 Li Polymer Battery |
| Weight | 170g±5g |
| Size | L*W*H：166 * 92 * 60（unit:mm） |
| Color | Black；Grayish white |
| Button Lifespan | ＞100000times |
| Performance Parameter | |
| Interface | USB cable；bluetooth; 2.4G wireless transmission |
| System Supported | Linux，Android，Windows XP、7、8、10，MAC |
| Language Supported | English,German,French,Japanese,Italian, Spanish, etc.(language can be customized) |
| Sensor | Planar CMOS sensor |
| Light Source | Red LED(Aiming)+White LED(lighting) |
| Processor | 32-bit ARM MCU |
| Storage | 64K（About 3500 14b 1D barcodes）（the memory capacity can be customized） |
| Motion tolerance | 100mm/s 13mil UPC |
| Resolution | 4mil |
| Transmission Distance | 90m |
| Bit Error Rate | 1/5000000 |
| Reading Mode | Image |
| Trigger Mode | Manual ；Continuous scanning;Auto-sensing |
| Prompt Mode | Buzzer, Indicator Light（LED） |
| Print Contrast | 35% |
| Charging time | 4-6 hours (without charger, only USB cable) |
| Working time | About 24 hours(under continuous scanning mode) |
| Decoding Capability | 1D: ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI |
| 2D: ●Data Matrix ●QR ●PDF417 | |
| Scanning Distance | 10mm-600mm |
| Scanning Angel | Roll360°；Pitch65°；Yew65° |
| Scanning Depth | Code39 5mil：3cm – 9cm Code39 20mil：4cm – 35cm QR 20mil：3cm – 20cm |
| Environment Parameter | |
| IP Grade | IP42 |
| Operating Temp. | 0 to 50℃ / 32 to 122℉ |
| Storage Temp. | 0 to 50℃ / 32 to 122℉ |
| Operating Humidity | 20% to 85%（No Condensation） |
| Storage Humidity | 20% to 85%（No Condensation） |
| ESD Protection | 15KV air discharge |
| Shock Resistance | 1.2m free fall on concrete surface |
