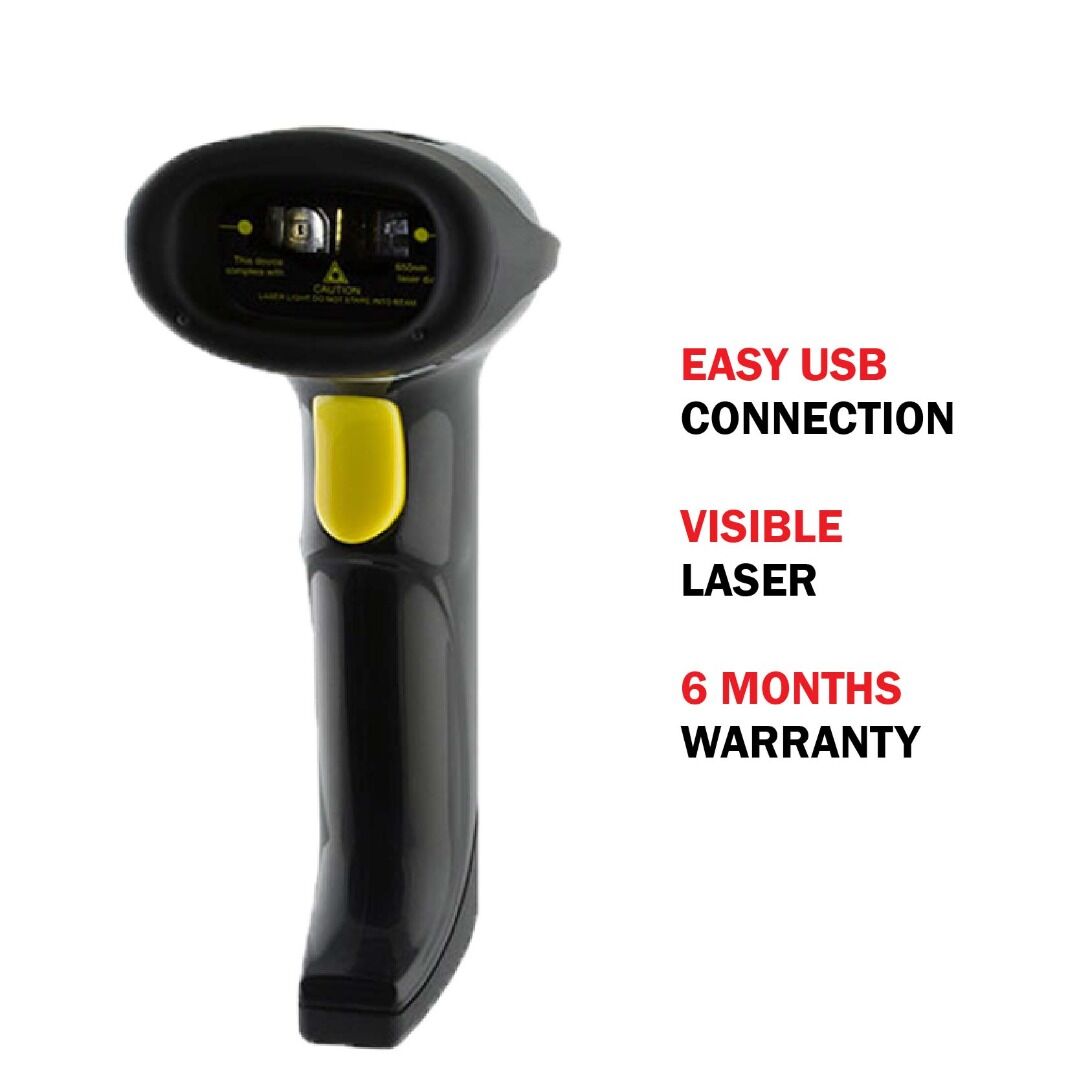

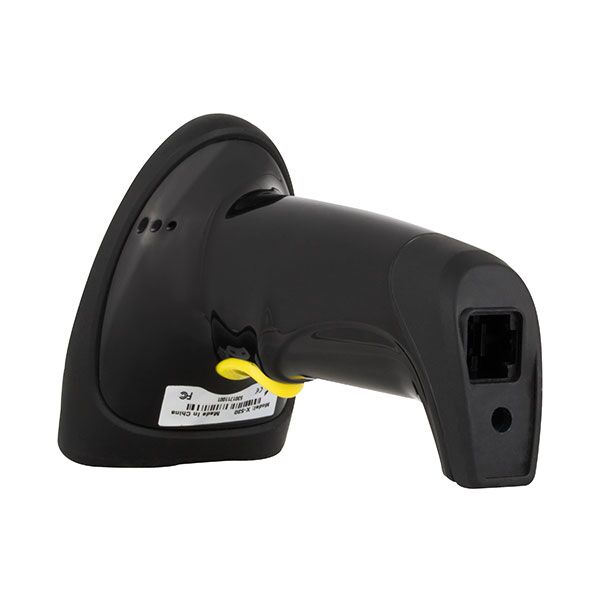

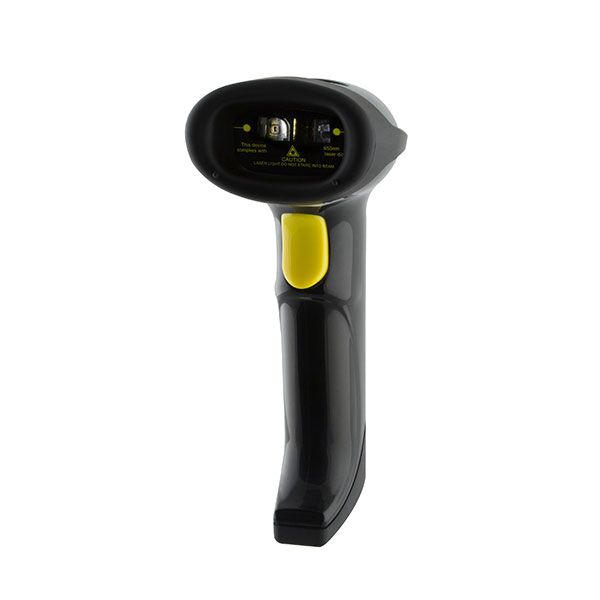

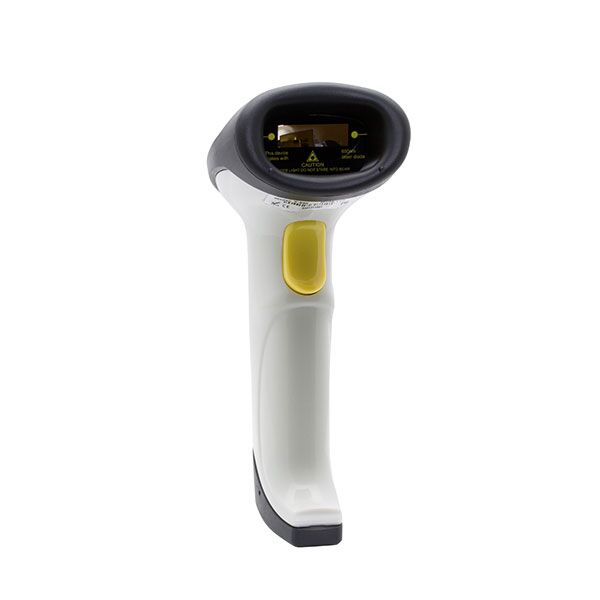

X-530 Laser Barcode Scanner

Availability:

15 in stock


  • Light Source: Visible laser 650nm
  • Supported Interface: Built-in PS/2 keyboard, RS-232 serial, standard 2.0USB interface
  • Bar Width: Minimum 0.1mm(4mils)
  • 6 months warranty *no on-site support (customer need to send to us for technical support)

Downloads

Brochure

User Manual

Weight 0.8 kg
Technical Parameters
Light source Visible laser 650nm
Error rate 1/5,000,000
Safety According to national laser safety standard Class2
Barcode type 1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39,

Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code

93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc.

Supported interfaces Built-in PS/2 keyboard, RS-232 serial, standard 2.0USB interface
Trigger mode Trigger buttons, automatic successive scanning, automatic scintillation

Scanning

Baud rate RS232baudrate: 2400-38400
Bar width Minimum 0.1mm(4mils)
Depth of scanning field 2-9cm(0.1mm bar width);3-40cm(0.3mm bar width)
Scanning speed 150times/sec
Scanning distance 10-600mm Elevation angle 60°, Inclination angle 45°
Operating temperature -20ºC-50º
Storage temperature -20℃-60℃
Operating humidity 0-95%
Storage humidity 5%-95%
Input voltage DC 5V±5%
Operating current 50ma(operating mode);30ma(standby mode);100ma(maximum peak)
Quiescent current 20mA
Shock resistance Pass 1.5m free fall test
Electromagnetic interference According to en8001,par1 standard
Dustproof waterproof According to iec529,ip42 standard
Scanner size LxWxH: 20cm x 6.5cm x 5.8cm
Shell material ABS+PVC+PC
Language Support many different languages
