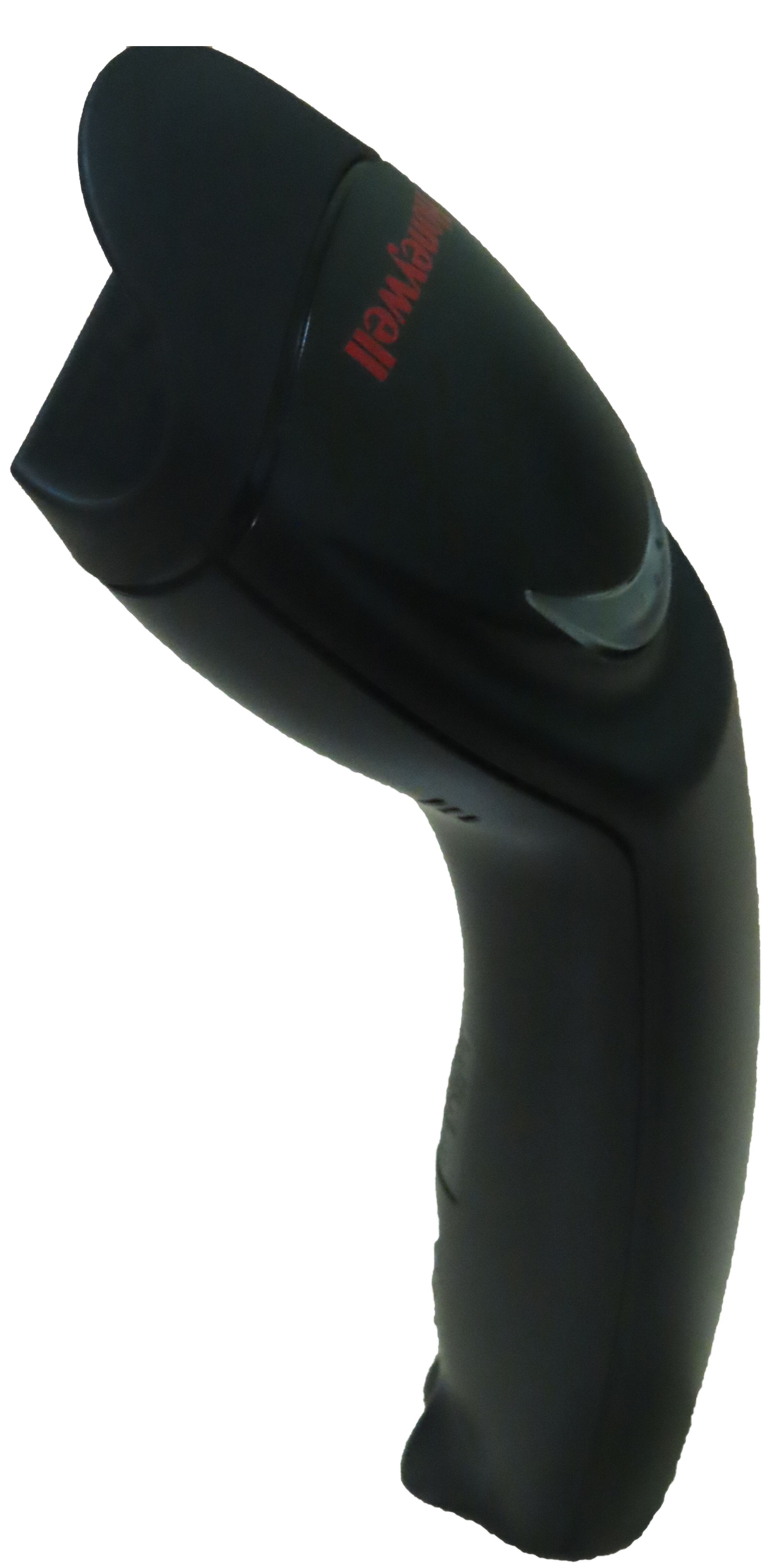

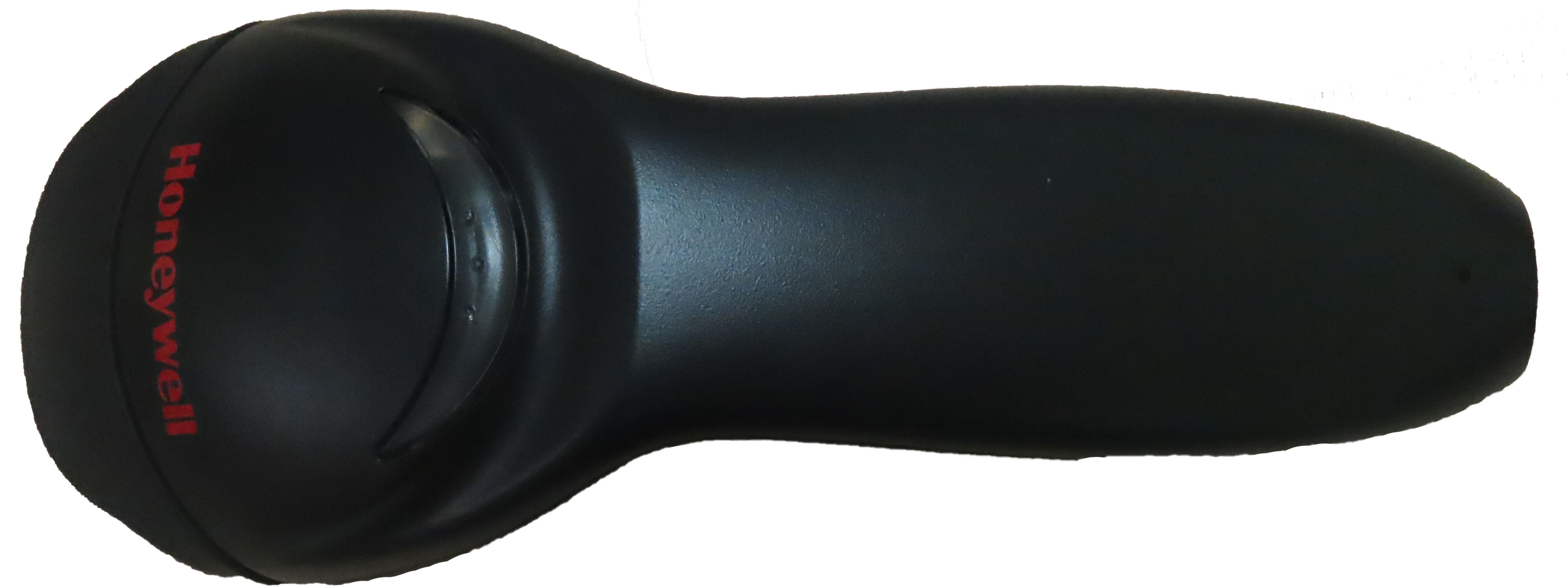

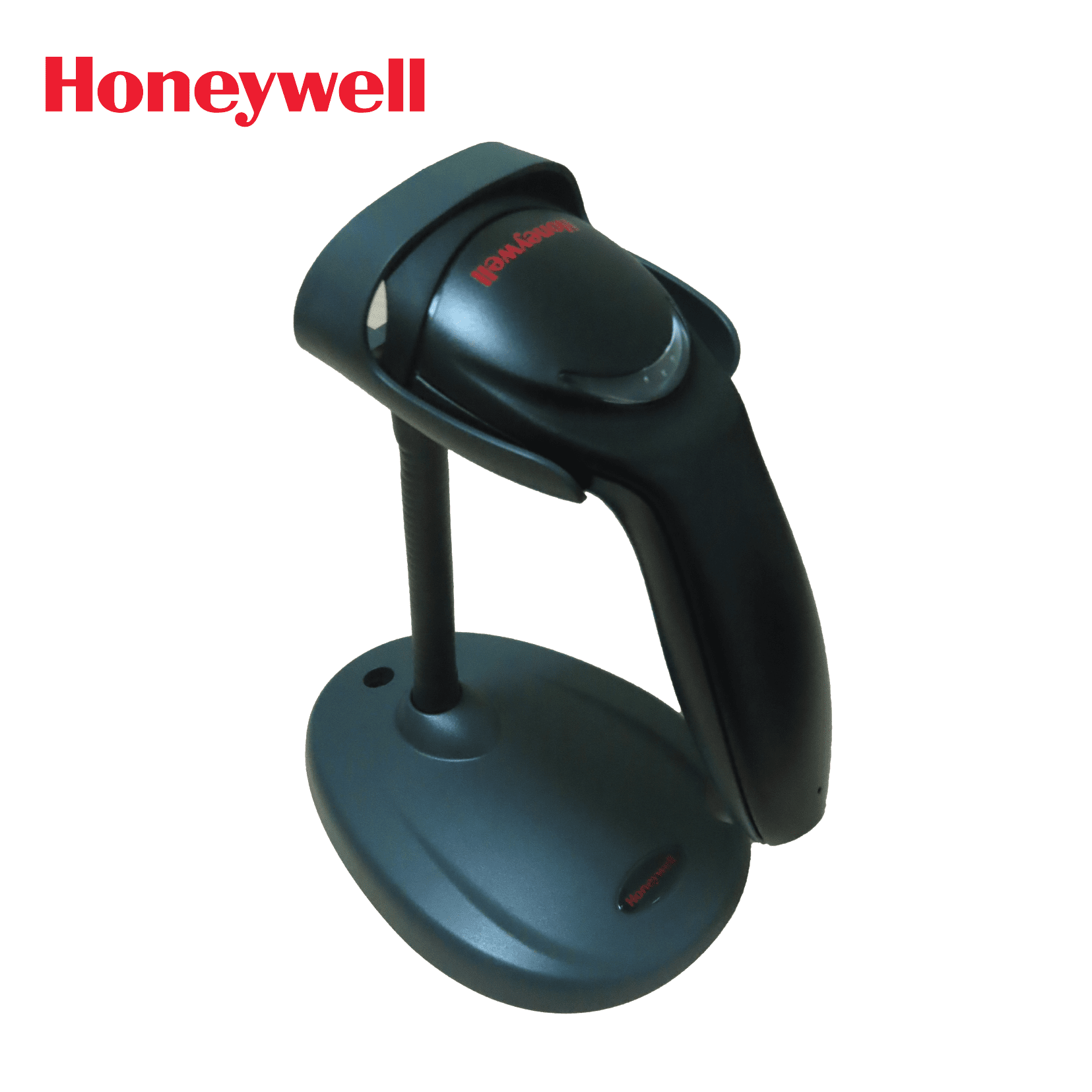

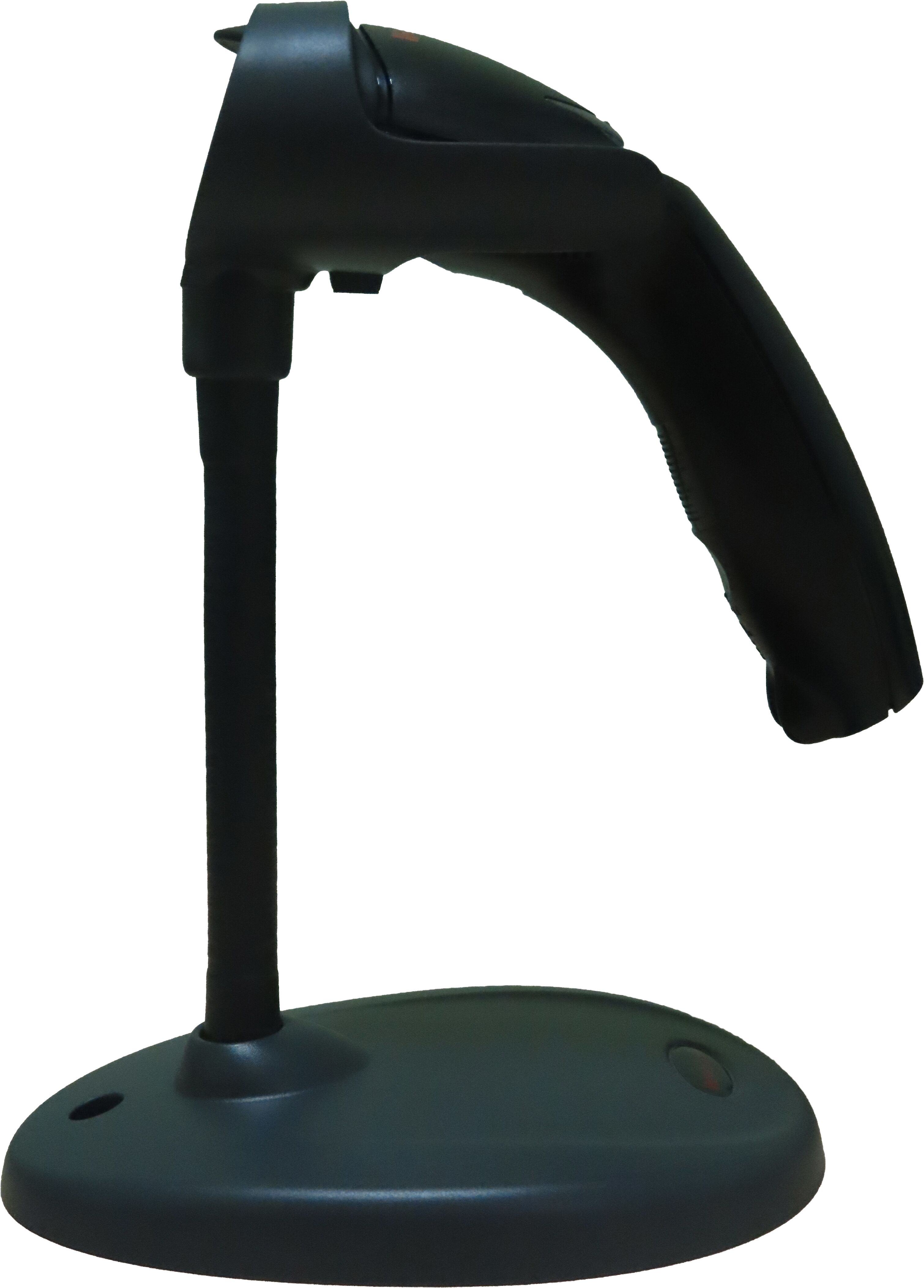

Honeywell MS5145 Eclipse Single-Line Laser Scanner
Honeywell MS5145 Eclipse Single-Line Laser Scanner
Honeywell MS5145 Eclipse Single-Line Laser Scanner
Honeywell MS5145 Eclipse Single-Line Laser Scanner
, ,

Honeywell MS5145 Eclipse Single-Line Laser Scanner

Availability:

Out of stock
Add to Wishlist

Overview

  • CodeGate: Zero in on desired code and complete data transmission with the push of a single button—ideal for menu scanning applications
  • CodeSense: Automatically wakes scanner from sleep mode when a bar code is detected
  • Powerlink Cables: Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®
  • Flash ROM: Protects POS investment with free firmware updates via MetroSet2 software and standard PC
  • OPOS and JPOS System Compatible: Easily adaptable to any end-user system environment
  • 6 months warranty *no on-site support (customer need to send to us for technical support)



Honeywell’s MS5145 EclipseTM is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.

Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell’s patented CodeGate ® technology, Eclipse can be used in a wide variety of applications. CodeGate ® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.

With Honeywell’s state-of-the-art scanning technology, the MS5145 Eclipse has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.

CodeSense ® is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate ®.

Downloads

Brochure



Weight 0.8 kg
Technical Parameters
Light source Visible laser 650nm
Error rate 1/5,000,000
Safety According to national laser safety standard Class2
Barcode type 1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39,

Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code

93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc.
Supported interfaces Built-in PS/2 keyboard, RS-232 serial, standard 2.0USB interface
Trigger mode Trigger buttons, automatic successive scanning, automatic scintillation

Scanning
Baud rate RS232baudrate: 2400-38400
Bar width Minimum 0.1mm(4mils)
Depth of scanning field 2-9cm(0.1mm bar width);3-40cm(0.3mm bar width)
Scanning speed 150times/sec
Scanning distance 10-600mm Elevation angle 60°, Inclination angle 45°
Operating temperature -20ºC-50º
Storage temperature -20℃-60℃
Operating humidity 0-95%
Storage humidity 5%-95%
Input voltage DC 5V±5%
Operating current 50ma(operating mode);30ma(standby mode);100ma(maximum peak)
Quiescent current 20mA
Shock resistance Pass 1.5m free fall test
Electromagnetic interference According to en8001,par1 standard
Dustproof waterproof According to iec529,ip42 standard
Scanner size LxWxH: 20cm x 6.5cm x 5.8cm
Shell material ABS+PVC+PC
Language Support many different languages
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Mechanical
Dimensions (LxWxH) 169 mm x 63 mm x 51 mm (6.7˝ x 2.5˝ 2.0˝)
Weight 100 g (3.5 oz)
Electrical
Input Voltage 5 VDC ± 0.25 V
Operating Power 675 mW (125 mA @ 5 V) – typical
DC Transformers Class 2: 5.2 VDC @ 1 A
Laser Class Class 1: IEC60825-1, EN60825-1
EMC FCC Part 15, ICES-003, EN55022 Class B
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux (450 foot-candles)
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Tilt, Pitch, Skew 42°, 68°, 52°
Decode Capability Code 39, Code 93, Code 128, UPC/EAN/JAN, Code 2 of 5, Code 11, Codabar, MSI Plessey, GS1 DataBar, Telepen, Trioptic
