Sale!
, ,

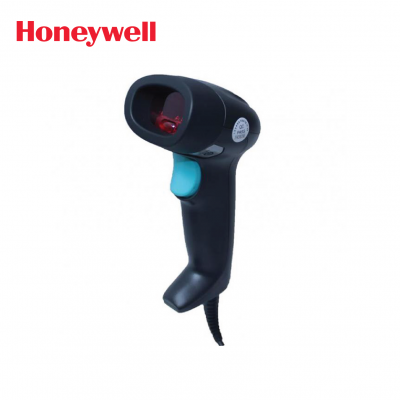

Youjie ZL2200 Laser Scanner


  • Decoding: Standard 1D barcodes
  • Scan Rate: 100 scan lines per second
  • Resolution: 4.5 mil
  • Color: Black
  • Interface: USB
  • P/N: ZL2200-1-USB
  • Warranty: One year against Manufacture defect starting from the invoice date

RM280.00 RM300.00

Youjie ZL2200 is a cost-effective single-line laser scanner with
optimized performance. As an entry level bar code scanner targeting
the low to middle segment of the AIDC markets, ZL2200 is ideal for
various scanning applications like retail POS for small supermarkets
and convenience stores, document scanning for office automation,
and mail and parcels processing for post offices.

Mechanical
Dimensions (LxWxH) 165mm x 65mm x 80mm
Weight 182g
Electrical
Input Voltage 5 VDC ± 0.25 V
Power (typical) 700mW (140 [email protected] 5V, standby)

1000mW (200 [email protected] 5V, decoding)

Electro Magnetic Compatibility EN55022 Class B
Environmental
Operating Temperature 0°C – 40°C
Storage Temperature -40°C – 60°C
Humidity 5% to 95% relative humidity, non-condensing
Light 0 – 100,000LUX



Drop Designed to withstand 1m drops



Environmental sealing Sealed to resist airborne particulate contaminants
