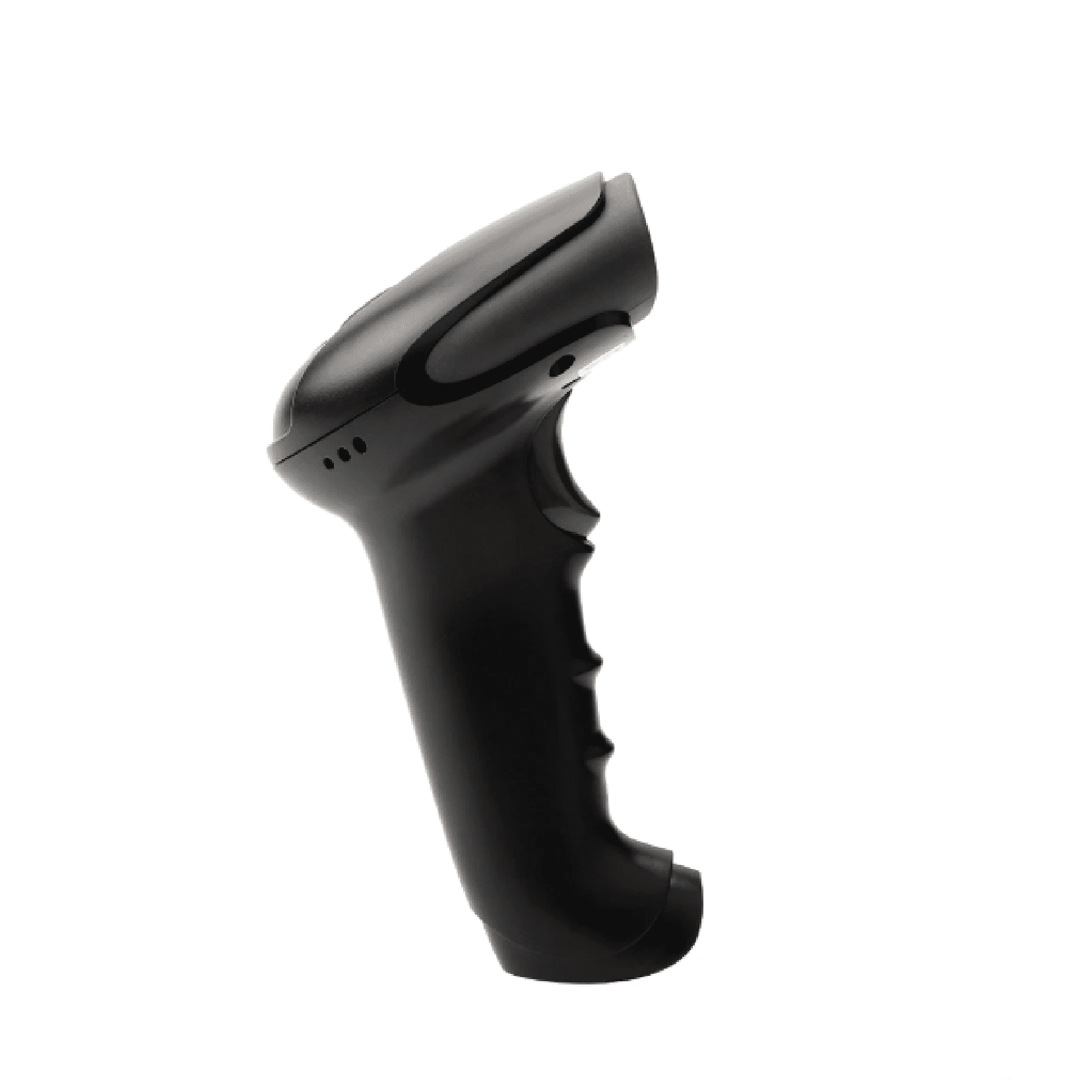

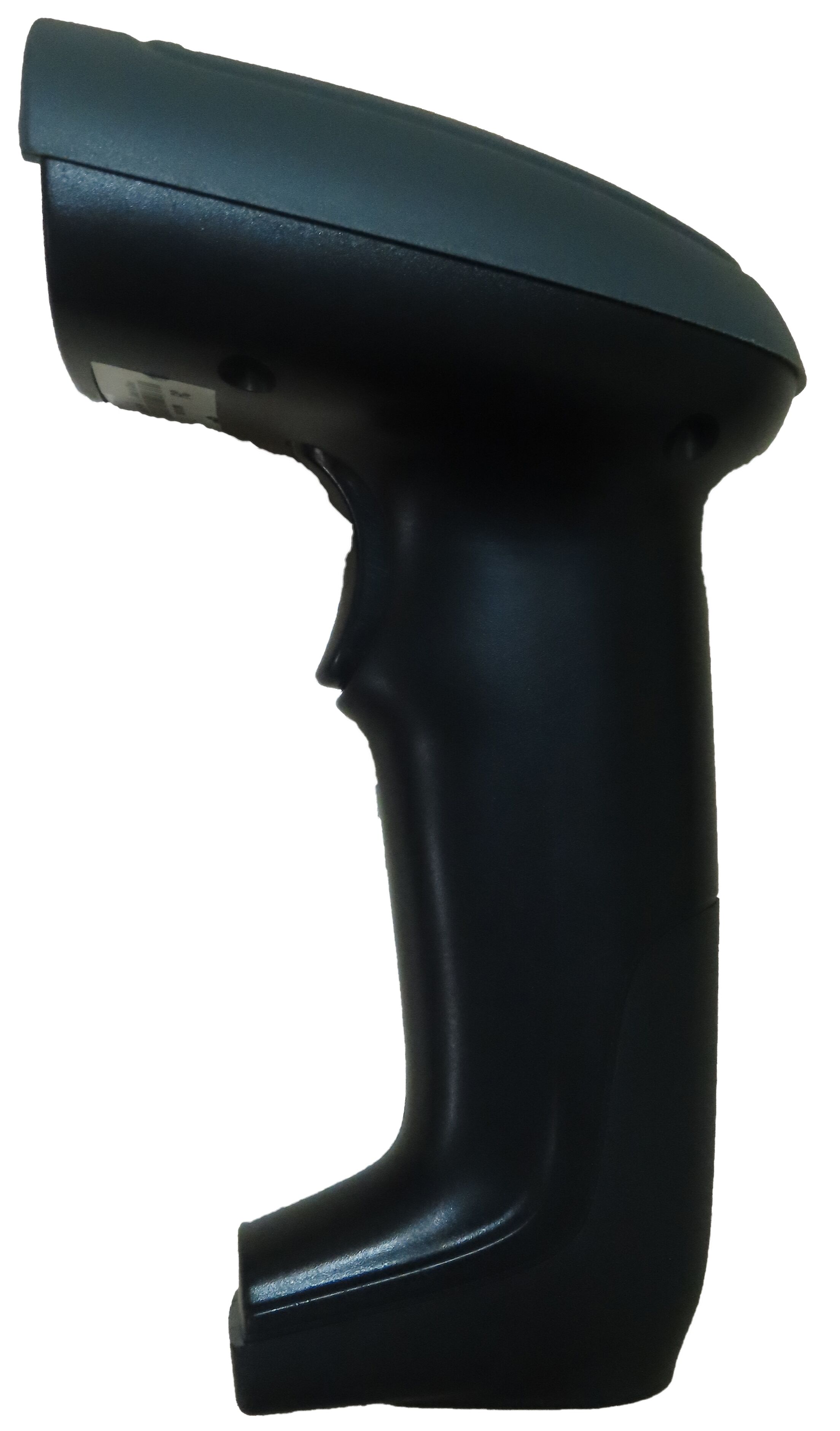

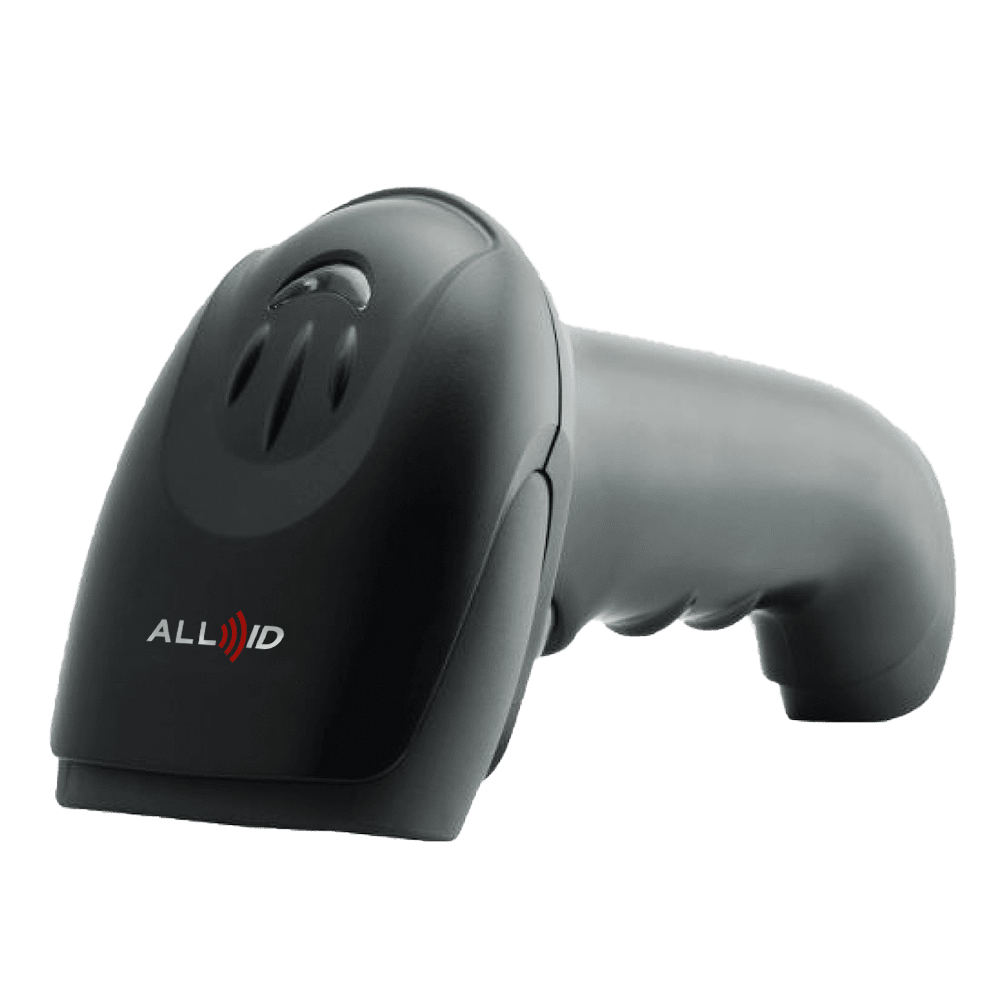

X-9701B 1D Wireless Bluetooth CCD Scanner
Availability:
5 in stock
The product is already in the wishlist!
Browse Wishlist
Highlights
- Bluetooth 1D Barcode Scanner
- USB cable；bluetooth; 2.4G wireless transmission
- Planar CMOS sensor
- Buzzer
- Indicator Light（LED）
- 6 months warranty *no on-site support (customer need to send to us for technical support)
| Weight | 0.8 kg |
|---|
| Item | Wireless CCD 1D Barcode Scanner |
| Physical Parameter | |
| Material | ABS+PVC+PC |
| Power Supply | Charge 5V ±5% ；3.7V 2000mAH lithium battery |
| Operating Current | 580mW（working）；197mW（standby）；890mW（maximum） |
| Weight | 146g±5g（Without cable） |
| Size | L*W*H：196 * 87 * 70（unit:mm） |
| Color | Black；Grayish white |
| Button Lifespan | ＞100000times |
| Performance Parameter | |
| Interface | USB cable；bluetooth;2.4G wireless |
| System Supported | Linux，Android，Windows XP、7、8、10，MAC |
| Language Supported | English, French, Dutch, Spanish (international), Italian (Italian 142), German, etc.(language
can be customized) |
| Sensor | Linear CCD sensor |
| Light Source | 632nm red diode(LED) |
| Processor | 32-bit ARM MCU |
| Storage | 64K（About 3500 14b 1D barcodes）（the memory capacity can be customized） |
| Scanning speed | 300scans/sec |
| Resolution | 4mil |
| Transmission Distance | 30m(under 2.4G wireless)
10m(under bluetooth mode) |
| Bit Error Rate | 1/5000000 |
| Scanning Distance | 10mm-600mm |
| Scanning Width | 5cm―15cm |
| Reading Mode | Image |
| Trigger Mode | Manual ；Continuous scanning |
| Prompt Mode | Buzzer, Indicator Light（LED） |
| Print Contrast | 30% |
| Charging time | 6-8 hours（without charger, only provide USB charging cable） |
| Working time | About 24 hours（under continuous scanning mode） |
| Decoding Capability | Code25-Interleaved ●Code25-Standard ●Code25-Matri
● Code39-Regular ●Code39-FullASCII ●Code32 Decoding ● Code93-Regular ●Code93-FullASCII ●Code128 Capability ● EAN/GSL/UCC-128Auto ●Codabar ●MSI ● EAN/JAN-13 ●UPC-A ●JAN-8 ● Code11 ●UPCE0 |
| Scanning Angel | Roll30°、Pitch65°、Yew65° |
| 5mil code39: 6–12 cm
10mil code39: 7—30 cm |
|
| Environment Parameter | |
| IP Grade | IP52 |
| Operating Temp. | 0 to 50℃ / 32 to 122℉ |
| Storage Temp. | 0 to 50℃ / 32 to 122℉ |
| Operating Humidity | 20% to 85%（No Condensation） |
| Storage Humidity | 20% to 85%（No Condensation） |
| ESD Protection | 15KV air discharge |
| Shock Resistance | 1.5m free fall on concrete surface |
