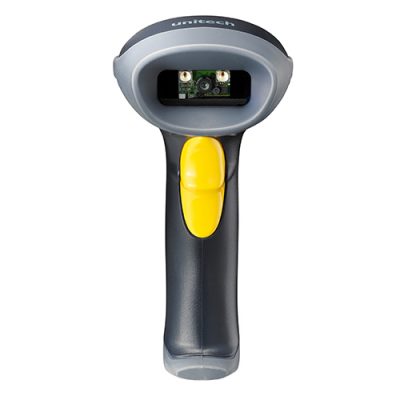

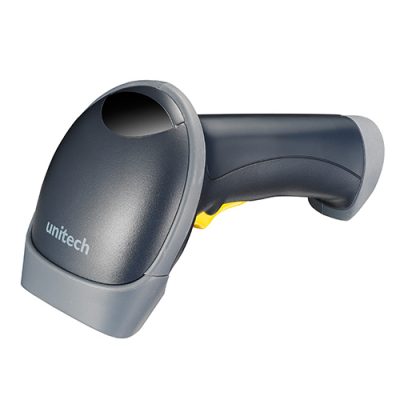

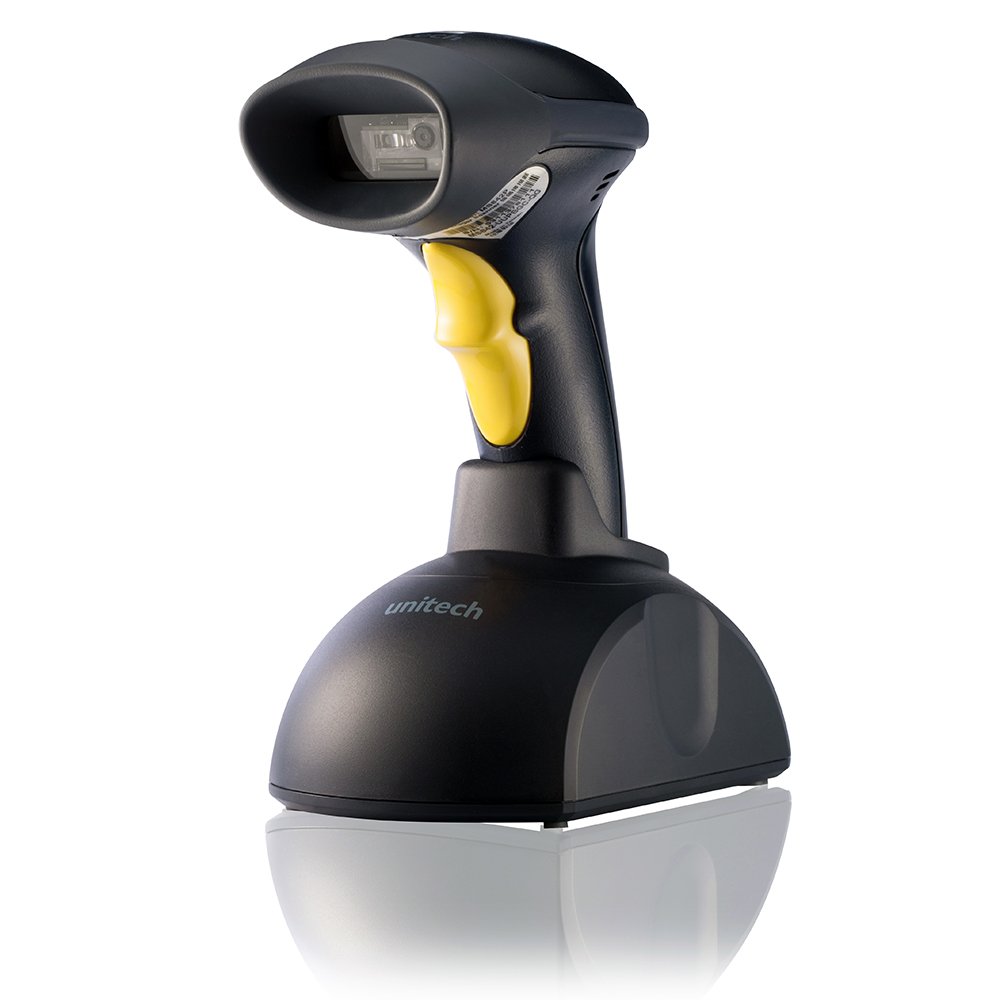

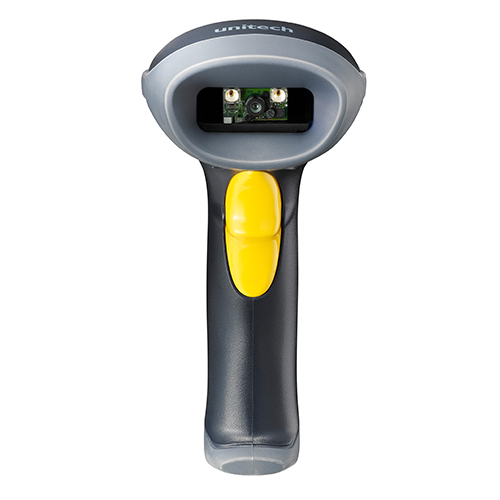

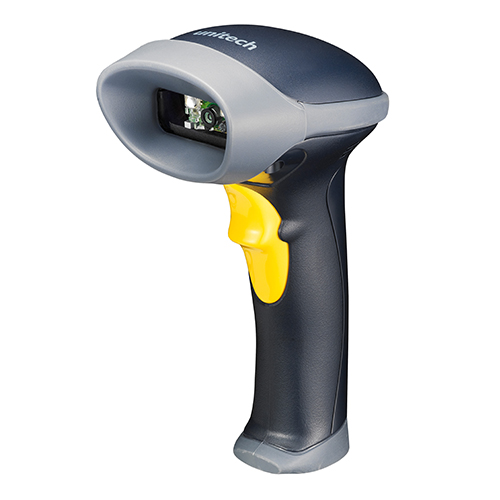

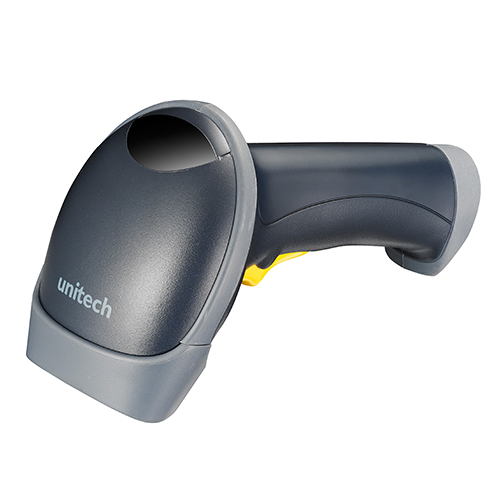

Unitech MS842P Wireless 2D Imager Scanner

Delivering efficiency, durability and compact size, the device combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The well integrated mobility design allows users to move around without being restricted, while supporting high comfort over long periods of operation. MS842P is a friendly device for a broad variety of markets and applications.

6 months warranty *no on-site support (customer need to send to us for technical support)

The MS842P can read 1D and 2D barcodes off phone screens, making it a great tool for capturing coupons, processing mobile payments, and mobile ticketing.

Features:

Mobility wireless design with 10M operation range.
Built in high performance 2D engine & decoder.
Durable, Compact and Long life trigger design
Rugged design by IP42 and 1.8m drops
Buffer mode for out-of-range reading

Downloads

Brochure

Weight	0.8 kg
Brands	Unitech

Optical & Performance

Sensor CMOS Sensor, 1280 x 960 pixels
Illumination 2cx Warm White LEDs
Skew Angle±60°
Pitch Angle Sensor±65°
Optical Resolution SR; 3mil (code 39). 5mil (PDF417)
Depth of Field(DOF PCS=80%)
3mil Code 39 2.8 in /7. 1cm (Near)
6.2 in / 15.8 cm (Far)
5mil PDF417 3.0 in./7.6cm (Near)
8.1 in./20.6 cm (Far)

Communication

Radio Unlicensed 2.4GHz
Wireless Coverage 10m ( line of sight)
Interface / Profile Wireless,SPP & HID profiles
Host Interface supportedUSB via Cradle or Dongle

Mechanical

Dimension 176 x 74 x 89 mm
Weight 210g without cable
Trigger Switch Life10 million times
Cradle Dimension 98 x 107 x 45 mm

Functionality

Operation ModeTrigger Mode,Flash Mode, Continues Mode, Buffer Mode

Symbologies

1D Barcodes1D: Code 39, Code 93, Code 128, UPC/EAN/JAN, Code 2 of 5,
Code 11, Codabar, MSI Plessey, GS1 DataBar,
Telepen, Trioptic
2D: PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR
Code, Aztec, RSS , Composite, TLC -39, MaxiCode
Postal: US PostNet, US Planet, UK Postal, Australian Postal,
Japan Postal, Dutch Postal (KIX)
Data FormattingPrefix, Suffix, Code ID, Reformatting Date

Electrical

Operation voltage DC3V to 5V
Battery Type Lithium-ion
Battery Capacity1620mAh charged via the cradle
Battery Charging time>4 hours
Operating Time>12 hours
Up to 50,000 scans at 1 scan/5 second

Environmental

ESD ProtectionFunctional after 8K Contact and 12K Air
Mechanical Shock 1.8 M onto concrete (scanner only)
Operating Temperature 0°C to 50°C
Storage Temperature-30°C to 70°C
Relative Humidity5% to 90% non-condensing
IP RatingIP42

Accessories

Items■ Cradle (PN# 5000-900039G)
■ Dongle (PN# 5500-900086G )
■ Battery pack (PN# 1400-900014G)
■ USB Cable for dongle (PN# 1550-900058G)
■ USB cable for cradle (PN# 1550-600626G)
■ Power adaptor (PN# 1010-900014G)

Regulatory Approvals

Regulatory Approvals CE, FCC, BSMI, VCCI, TAA Compliant

What comes in the box

The standard package with dongle only:
■ MS842P scanner
■ Power adapter
■ Dongle
■ USB extension cable for dongle

The standard package with dongle & cradle:
■ MS842P scanner
■ Power adapter
■ Dongle
■ Cradle connection cable
■ Cradle
