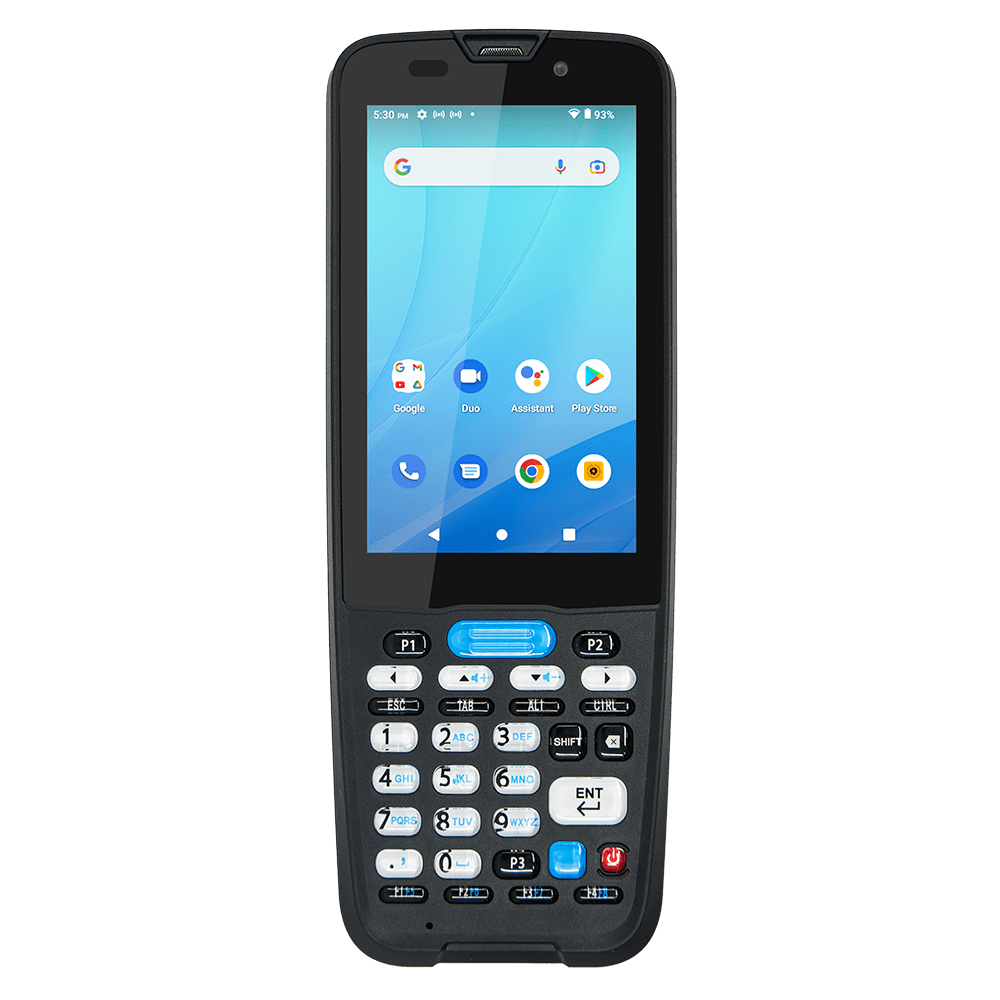

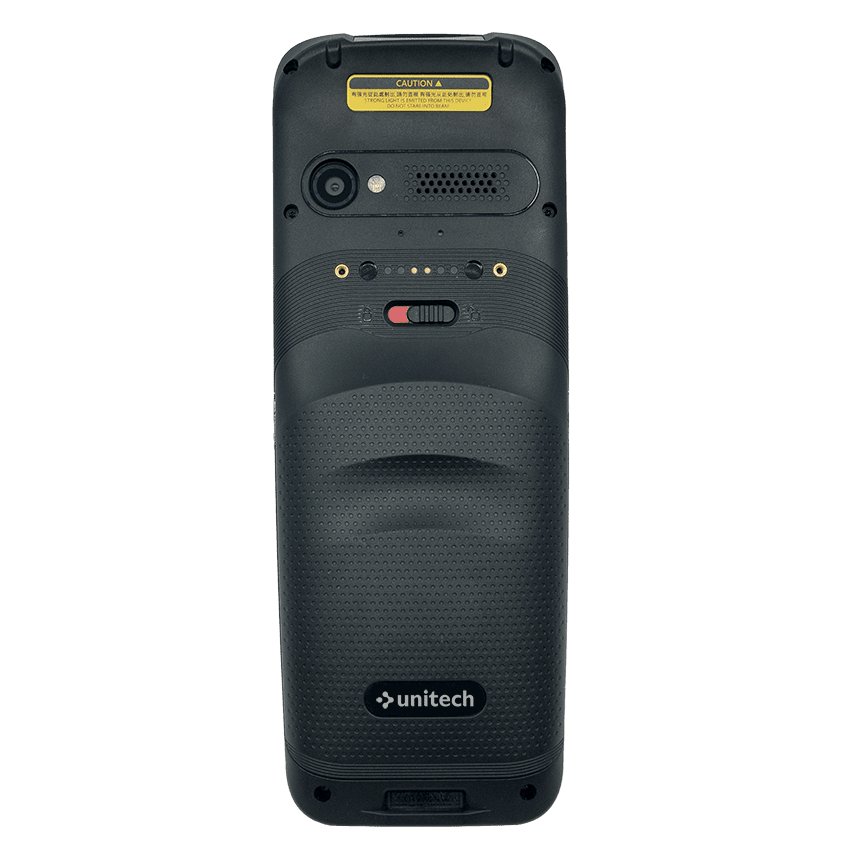

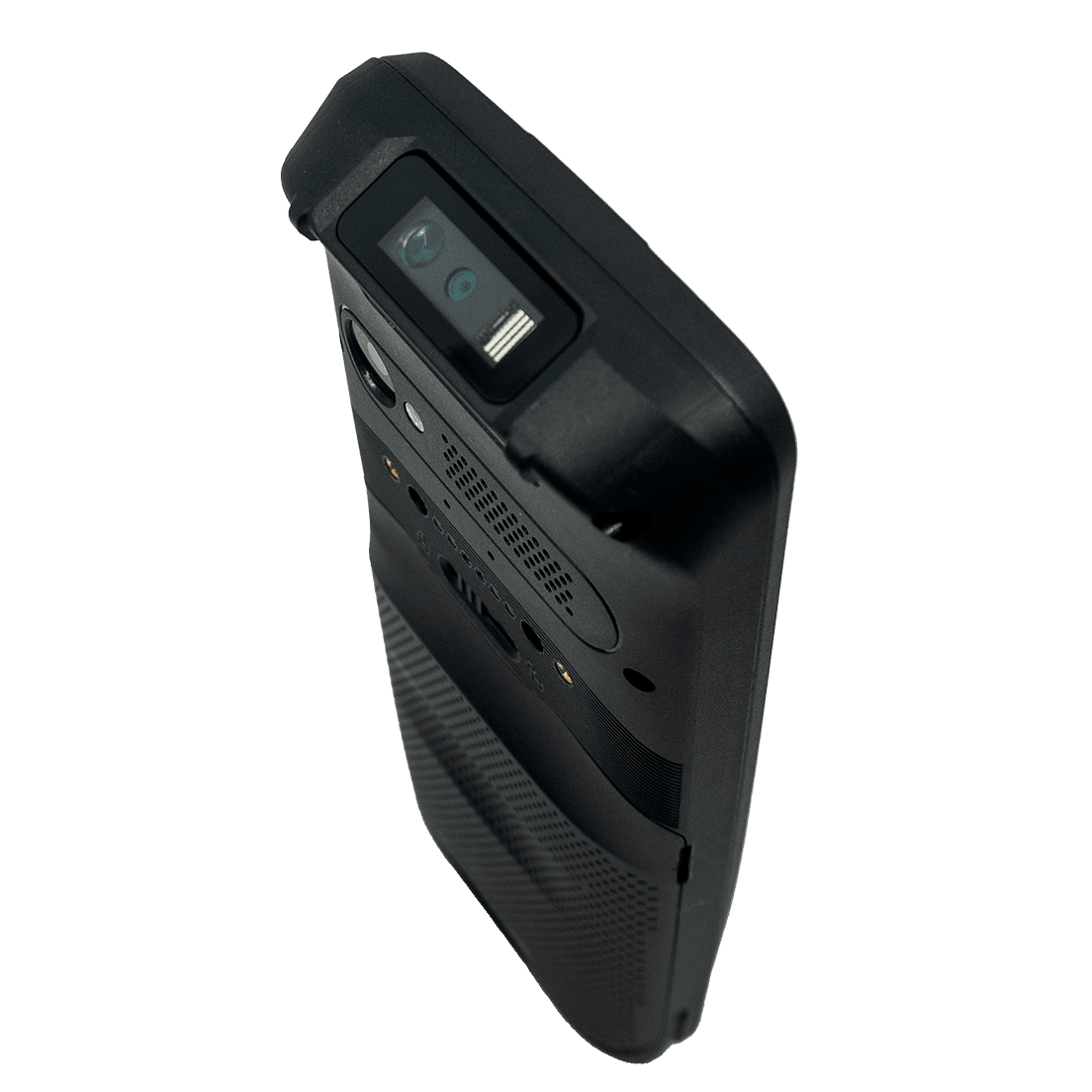

Unitech HT330 4-inch Rugged Handheld Terminal


As a reliable work companion, HT330 has been upgraded to the latest Android 12 OS system with GMS certification providing an intuitive and friendly interface to manage data effectively on a 4-inch screen. The removable 5200mAh Lithium-ion battery carries your task for over 20 hours, allowing a full shift to go on. Reaching IP67 enterprise protection and withstanding 1.5 drop makes HT330 a perfect tool to maximize data collection, management, and traceability in nearly every practice of retail, transportation& logistics, manufacturing, and more!

  • Android 12 with GMS certified
  • Removable 5200mAh battery (20 Working Hours)
  • IP67 rating & 1.5m drop

Features

  • Android 12 OS with GMS certified
  • Ergonomic one-handed operation
  • Durable keypad with backlight: 32 keys with 2.5 million lifetime clicks
  • 5200mAh battery for 20 hours of operation
  • 1.5M drop-resistant housing (1.8M with bumper)
  • IP67 protection against water and dust
  • Support Bluetooth® 5.0
  • Support MDM software and utilities such as MoboLink, SOTI, AirWatch, and 42Gears.



Downloads

Brochure



Operating System

  • OSAndroid 12
  • GMS certifiedGMS certified
  • CPUQcta-core 2GHz
  • Memory3GB RAM / 32GB Flash
  • Languages supportMulti-languages

Display

  • Screen Size4”, WVGA 800 X 480, Backlight (450nits)
  • Touch PanelMulti-touch panel, gloves and wet hands supported

Buttons / Keypad

  • Buttons / KeypadNumeric (32 keys); number keys, function and direction keys with backlight

Camera

  • CameraRear 13 MP Autofocus with flash
    5MP Front Camera

Indicator Type

  • TypeLED, Speaker, Vibrator

Symbologies

  • 1D BarcodesSupport all major 1D barcodes
  • 2D BarcodesSupport all major 2D barcodes

RFID

  • UHF RFIDOptional
  • HF RFIDOptional: Frequency 13.56Mhz, ISO14443A/B,
    ISO15693 standard, NFC, MIFARE, Felica

Communication

  • Bluetooth®Bluetooth 5.0
  • WLAN802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, fast roaming, 2.4G+5GHz,
    hotspot
  • WWAN4G:FDD-LTE B1/2/3/4/5/7/8/12/17/20/28a&b/66
    TDD-LTE B38/39/40/41
    3G: WCDMA B1/2/4/5/8
    2G: GSM B2/3/5/8
  • GPSGPS/AGPS, GLONASS, BeiDou, Galileo
  • SensorsGyroscope, G-sensor, E-Compass, Light & Proximity Sensor

I/O Interfaces

  • USBUSB 2.0 (Type-C)
  • OTGYes, over USB Type-C
  • POGO PINPogo Pin Rear: Support Gun grip
    Pogo Pin Bottom: Charging via cradle
    Pogo Pin Rear: Support UHF Gun Grip (optional)
  • SIM SlotNano SIM Slot x 2
  • Expansion SlotMicroSD memory card up to 256G
  • AudioSpeaker: 1W output, 90 dB at 10cm
    MIC: 2 MIC design

Enclosure

  • Dimensions ( W x H x D )185 mm x 70 mm x 23.8 mm
  • Weight295g with battery

Durability

  • Drop Specification1.5m / 1.8m (with boot case)
  • SealingIP67
  • Tumble testTumble 600 times (1.6 ft./0.5 m)

Environmental

  • Operating temperature-20°C to 60°C
  • Storage temperature– 40°C to 70°C (without battery)
  • Charging temperature0°C to 45°C
  • Relative Humidity5% ~ 95% (non-condensing)

Power Source

  • Main battery3.85V 5200mAh Li-ION battery (removable),
    Operating time : over 20 hours
    (depending on the specific environment)

Software

  • MDM SoftwareSOTI, Ivanti, Wavelink, 42Gears, and MoboLink

Regulatory Approvals

  • Regulatory ApprovalsCE, FCC, NCC, CCC, SRRC, VCCI, TELEC, RoHS, BQB, N-Mark, BSMI

What comes in the box

The basic package contents:

  • HT330 Terminal
  • Battery
  • Hand Strap
  • USB Cable
  • Quick Start Guide
