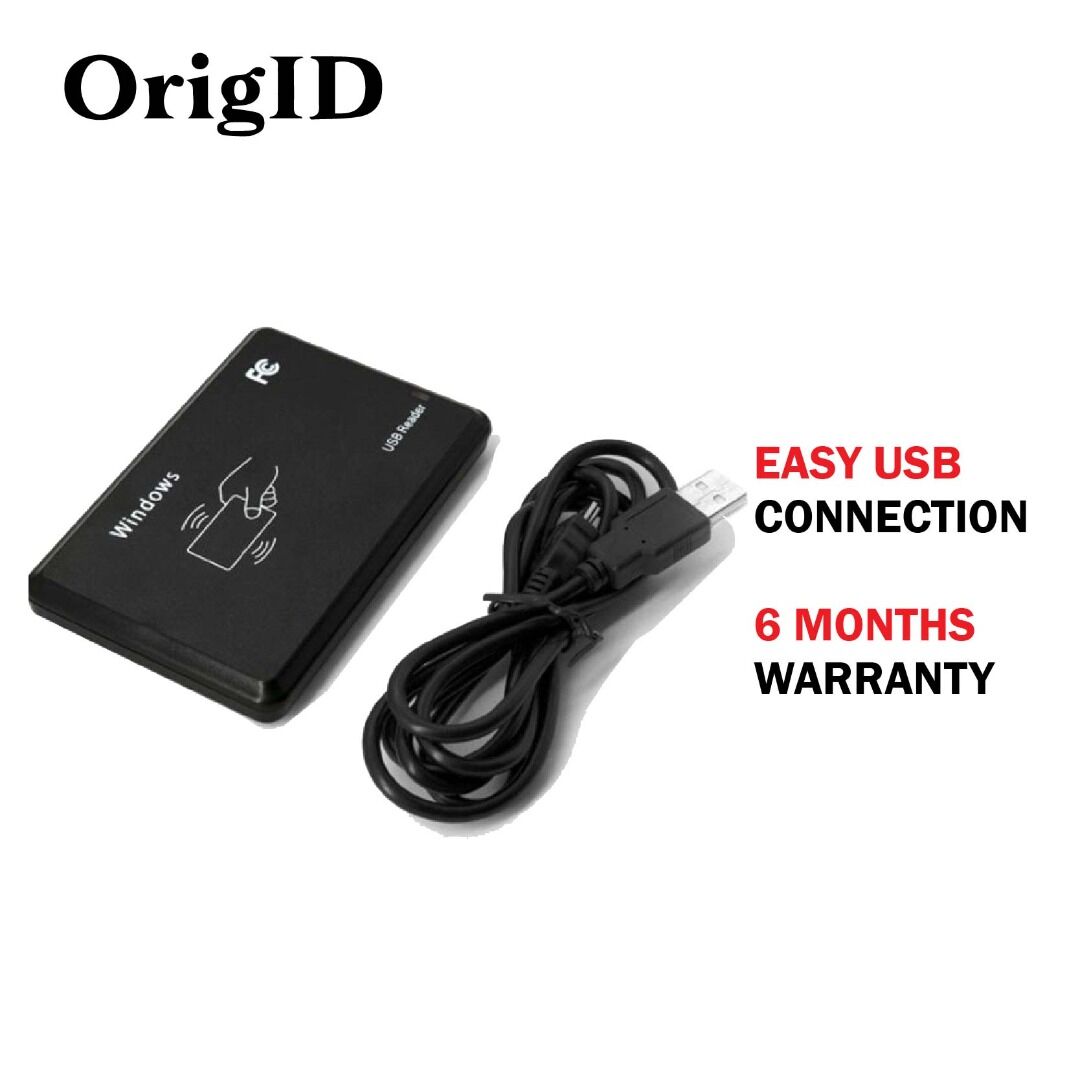

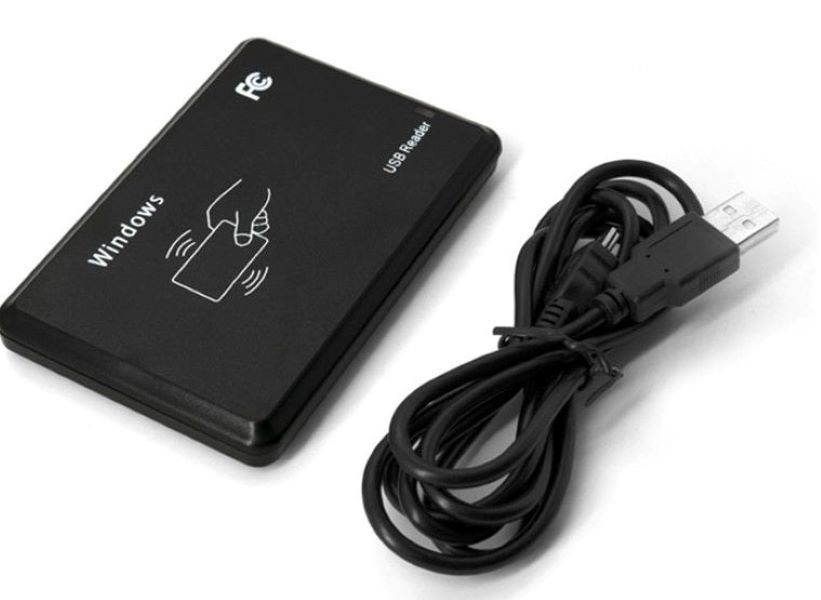

OrigID RL122U EM Proximity Card Reader

Availability:

10 in stock
Add to Wishlist
  • Output: Decimal
  • Output format: 10 digits decimal
  • Supported Card: EM (aka ID) Low Frequency Prox Card
  • Frequency: 125kHz
  • Reading time: <0.5s
  • Power Supply: +5V DC
  • Current consumption: 70mA
  • Operating Distance: 0~120mm
  • Interface: USB

Offsite warranty available.

Performance
Output: Decimal
Output format: 10 digits decimal

Specifications
Dimensions: 104 x 68 x 10mm
Colour: Black
Supported Card: EM (aka ID) Low Frequency Prox Card
Frequency: 125kHz
Reading time: <0.5s
Baud Rate: 9600
Power Supply: +5V DC
Current consumption: 70mA
Operating Distance: 0~120mm
Interface: USB
Status Indication: LED / Buzzer
Operating Temperature: -10℃~ +70℃
Storage Temperature: -20℃~ +80℃

Downloads

Brochure



Weight 0.3 kg
  • Access control, PC Access
  • Identification
  • Customizing cards
  • Payment
  • Anti-fake
  • Library management



Questions & Answers

  1. 0 votes
    Q Hi , i m Chan . can this reader read back number of 10 digit on proximity card ? if yes , the ou... answer now
    Answered by the admin Hi Chan, Yes, this reader can read 10 digits on proximity card. The output format depends on the card and the reader. Usually on proximity card, they will read the 10 digits at the front. Example: number on the card is "0062054168 062,54158" so the reader will read the 10 digits in front instead.
