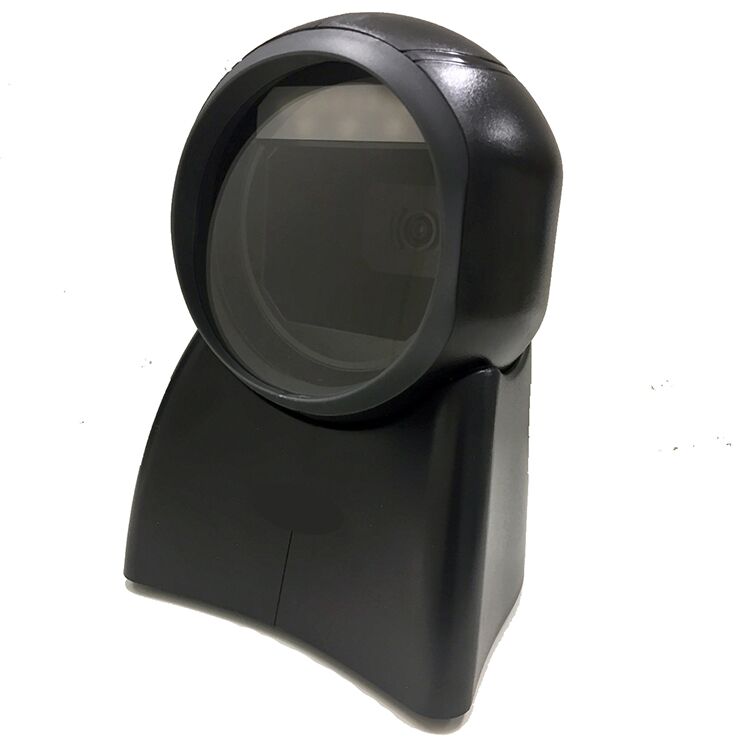

ALLID OD7100E Omni Directional Barcode Scanner

Availability:

8 in stock


  • Highly sensitive image sensor
  • Reads barcode on bottles well
  • Fast scaning speed of 2500 times/sec
  • Supports multi languages and all kinds of OS (Windows XP, 7, 8, 10, Android, IOS, Linux)
  • 6 months warranty *no on-site support (customer need to send to us for technical support)

RM539.00 RM620.00

8 in stock

Overview

  • Highly sensitive image sensor
  • Reads barcode on bottles well
  • Fast scaning speed of 2500 times/sec
  • Supports multi languages and all kinds of OS (Windows XP, 7, 8, 10, Android, IOS, Linux)

Downloads

Brochure

Scan Performance
Scan mode Omni directional 2D Image scanning
Alarm mode LED light alarm, Buzzer alarm
Read speed 2500 times/sec
Resolution SXGA-W (W 1280* H 1024) Ratio (5:4)
Scan angle Horizontal ±55°, Vertical ±37.5°
Scan depth of field 4mil (Code 39) 20~120mm

13mil (UPC/EAN) 20~210mm

15mil (PDF417) 20~180mm

15mil (QR code) 30~130mm

Revolve angle Roll:0-360°、Pitch:±60°or greater、Yaw:±55°or greater
Barcode type Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN, etc
Electrical
Voltage DC+5V±5% or +3.3V±5%
Current 200mA (stand by); 420mA (operation)
Interfaces USB (Drive Free), USB Virtual

RS232 (Install Drive), RS232(Drive Free)

Light level Wavelength: 675nm±3nm Infrared LED
Environmental
Operating temperature -20°C ~ 60°C
Storage temperature -40°C ~ 70°C
Humidity 5% to 95% (Non-condensing)
Drop Designed to withstand 1.2m drops
Physical
Dimensions (LxWxH) 110mm × 124mm × 152mm
Weight 450g
Color Black
Material PC
