KR160 Passport Scanner

All ID

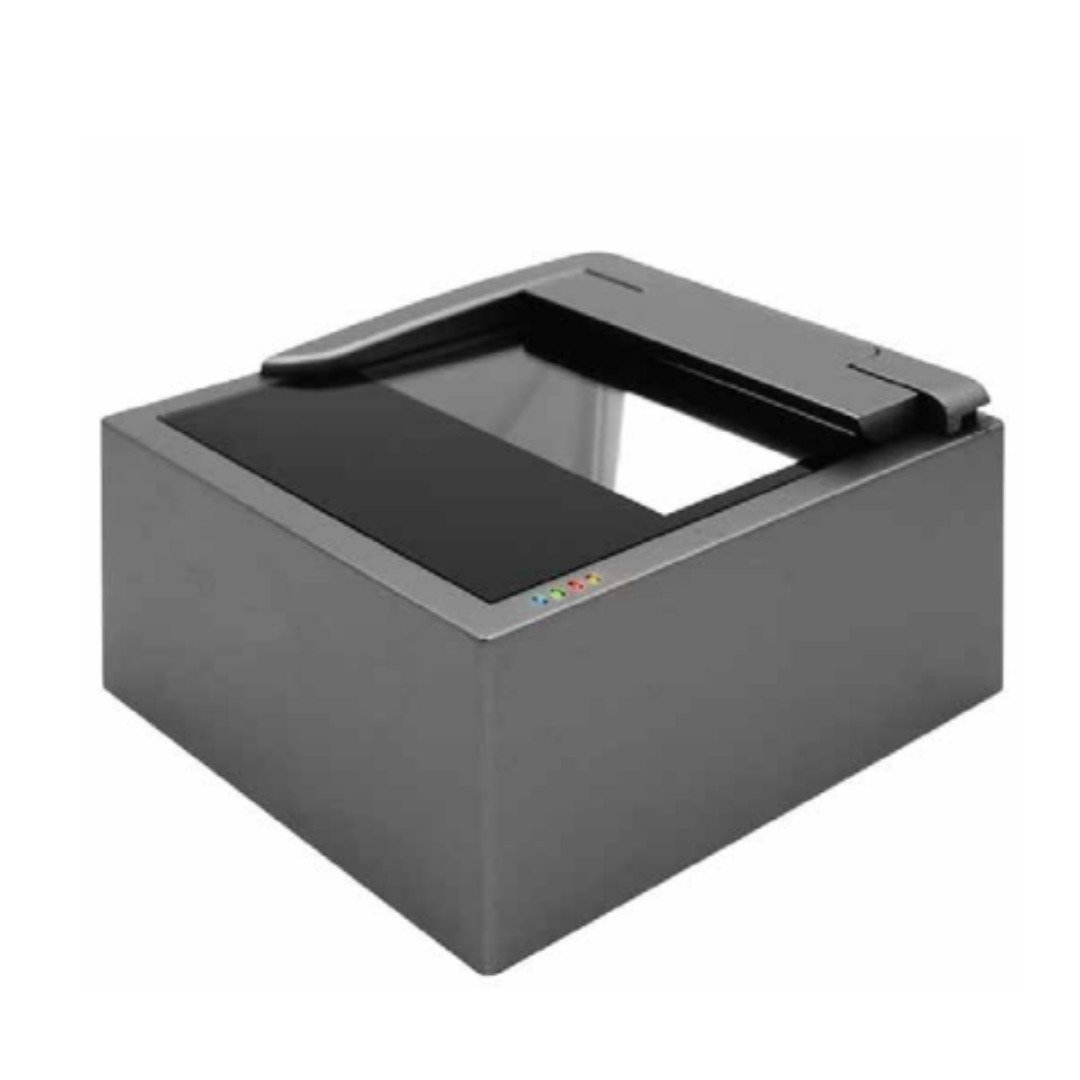

The KR-160 is a newly designed, multi-functional document scanner with a removable cover. It is based on OCR technology and compliant with ICAO 9303 standard. It is able to extract data from Passport, Visa, ID card, Driver License and other travel documents. It provides perfect solutions for kiosk and desktop ID authentication.

Description

The KR-160 is a newly designed, multi-functional document scanner with a removable cover. It is
based on OCR technology and compliant with ICAO 9303 standard. It is able to extract data from
Passport, Visa, ID card, Driver License and other travel documents. It provides perfect solutions for
kiosk and desktop ID authentication.

Multipurpose & Multifunctional

Reads multiple documents with ICAO 9303 doc specication, and non-ICAO 9303 documents such as
passport, epassport, visa, ID, eID card, driver license etc.

Automatic Detection & OCR Processing

Just place the document properly, it will detect and capture the image automatically, free your hands and eliminate human typing error.

Fast & Time Saving

Only takes 1 to 2 seconds to process which speeds up a lot queuing time.

Easy to integrate SDK

With detailed API user guide and full SDK, it is easy to integrate the reader into user’s own application
system and visitor management system.

Downloads

Brochure

Weight 2.0 kg
Dimensions 17.5 × 19.9 × 14.0 cm

SPECIFICATIONS

Image Acquisition : Active scan area: 127mm x 88mm | CMOS, 500 Megapixels (2592*1944)

Imaging : Color Depth: 24 bits/pixels | Resolution: 500 DPI | Image Format: JPEG, BMP, PNG

Communication Speed : Up to 848kbps

Status Indicators : Four status indicator LEDs (for Power, Ready, Error, and Warning) & customize indicators

Software : Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program

Programming Language: VC, VB, C#, Java, etc. Provide OCR SDK for Linux.

Power : Input: AC 100~240V 50~60Hz, 0.8A / Output: DC 12V, 2A
