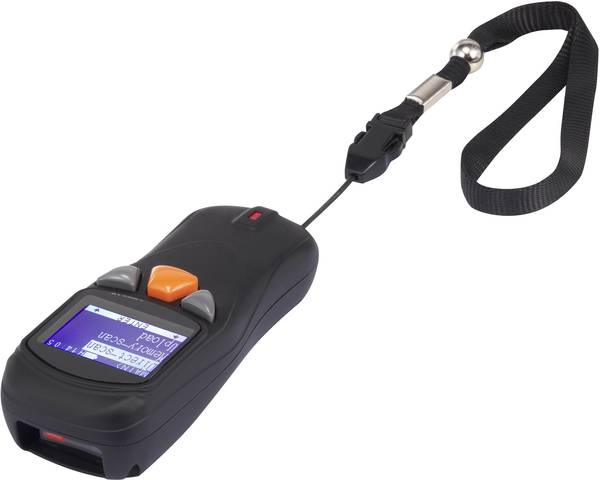

iDC-9607 Pocket 1D Barcode Scanner


  • Pocket-size design
  • 300 scans/sec scanning speed
  • Can save 65,000 sets more than EAN 13 barcode
  • Power Supply: 5 V/DC ± 5%
  • Operating Current: 170 mA

Features
  • Pocket-size design: 100 x 43 x 27 (mm)
  • 2.4GHz wireless: BT Class 1
  • Supports Apple iOS, Android and Windows devices through BT
  • Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
  • Provides two operation modes: “data transmission” or “batch mode”
  • When iDC960X series connect to iPhone/ iPad/ iPod Touch
  • Left button can raise & lower on-screen keyboard (press 4 for 4 secs)

Downloads

Brochure

Weight 0.6 kg

Performance

Light source 610nm~640nm Red LED
LCD Panel Dots: 128 x 64

Viewing Area: 32 x 25 mm (with backlight)

Depth of Field UPCA (13mil): 50mm~620mm
EAN13 (13mil): 50 mm~610mm
Scan speed 300 scans/sec
Scan angle Pitch +- 60º @ 0ºRoll and 0ºSkew
Roll +- 30º @ Pitch and 0º Skew
Skew +- 60º @ Roll and 0º Pitch
Best resolution 4 mil
Print contrast ≥ 30%
Radio Range BT Class 1 (100m, in open area)
RF Frequency 2.4GHz
Communication HID profile, SPP profile
Battery Type 3.7V 900mAh Li-Ion battery
Scans per charge More than 25,000 scans when fully charged
Charge Time 4~5 hours
Current Charging 500 mA Max
Power Cable Mini USB Cable
Memory Capacity 1MB
(can save 65,000 sets
more than EAN 13 barcode)
Humidity 20% to 95% relative
humidity, non-considering
Temp.-operation 0ºC to 50ºC
Temp.-storage -10ºC to 60ºC
