iData, Mobile Computers, Windows/Android

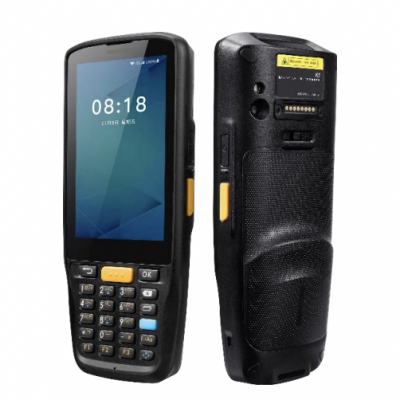

iData K1S Mobile Computer

iData K1S is an ultra-rugged Android keyboard-type smart terminal, which is time-tested in many scenarios such as new retail business, warehouses, manufacturing plants, express and logistics, etc. It improves the working capacity without increasing your purchase cost. By adding a pistol grip, K1S is able to deal with high-frequency scanning in inventory process

Multifunctional to meet requirements of different scenes

Equipped with iData’s self-developed scanning engine, K1S can easily scan damaged, dirty, DPM barcodes, etc. The breakthrough Wi-Fi roaming technology, as well as the 5G PA amplifier, enable a better network experience in complex environments.

Battery life designed for 1.5 shifts

The 4400mAh large battery can be used for 12 hours, which can meet the needs of long shifts and reduce the loss caused by equipment downtime. The battery is detachable so that it can work continuously right after the battery replacement.

Enterprise-level protection to reduce malfunction losses

IP65 makes the equipment waterproof, dustproof, rainproof and snowproof. It can work the sun and rain environments outdoors. The 1.5-meter anti-drop design enables users to mount the equipment on forklifts, shelves and other heights confidently. This device is designed to survive accident drops.

Downloads

Brochure

System Configuration

Octa-core 2.0GHz high-performance processor
Android 9.0 (GMS) / Android 11.0 (GMS)
64GB + 4GB (standard）
Single SIM card
Wi-Fi Only：SIM not available
Micro SD card (up to 256GB)
4-inch, resolution: 800*480 pixels
Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
13 megapixels of rear camera, support auto-focusing/PDAF
26 keypads: front key*23, side scan key *2, side power key *1
Type-C charging and pin port charging
3.8V lithium battery, with 4400mAh, detachable, backup-battery support (support on selected terminals)

Structure Parameter

168mm*71mm*26mm
270g (including the battery)

Communications Transmission

China & Eurasian version:
2G: 900/1800
3G: WCDMA：B1/B8
4G: FDD-LTE：B1/B3/B7/B8/B20，TDD-LTE： B34/B38/B40
American version:
2G: B2/B3/B5
3G: B1/B2/B4/B5，CDMA&EVDO：BC0/BC1 (The United States)
4G: B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
Wi-Fi Only Version：Not available

Accesories

USB cable*1, power adapter*1, hand strap*1, device-back strap*1, battery*1
Single charging cradle, bottom charger, 4-slot charging cradle, 4-slot battery charging cradle, pistol grip, fanny pack, protective film, protective case
