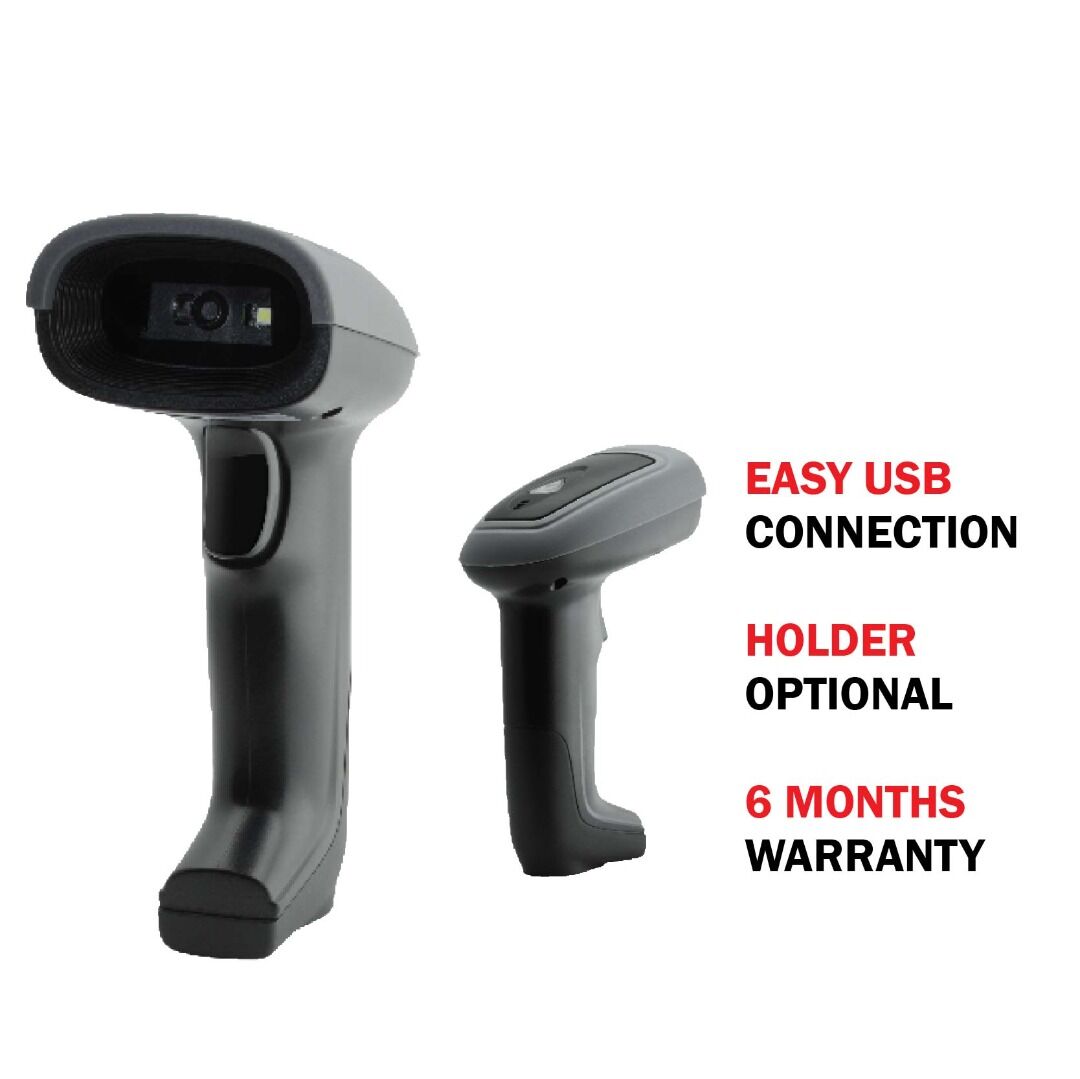

GT-1900 Wired 2D Barcode Scanner

Availability:

1 in stock


  • Connection: USB
  • 2M Shock Resistance
  • Long Lifespan Button
  • Industrial Housing Design
  • 200scans/sec Scanning Speed
  • Read All Standard 1D&2D Bar Codes on Electronic Screen
  • New Interface Design (pull out easily)
  • Holder Optional
  • 6 months warranty *no on-site support (customer need to send to us for technical support)

Downloads

Brochure

User Manual

Weight 0.8 kg
Specifications
Physical Parameters
Material ABS+PC+TPU
Size L*W*H :170mm*97mm*68mm
Power Supply DC 5V
Performance Parameters
Support Interface USB
Sensor Planar CMOS sensor
Light Source Red CCD ,white LED (lighting)
Processor 32-bit ARM MCU
Decoding Capability 1D: Codabar, Code39, Code32, InterLeaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISSN, GS1 DATABAR(RSS14), GS1

DATABAR Limited, Gs1databar Expanded

2D: PDF417, QR CODE, MICRO QR, DATAMATRIX, AZTEC CODE

Resolution Code39 3mil, QR 8.7mil, PDF417 5mil,PCS45%
Depth of field 5MIL CODE39: 3–11 CM

13MIL UPC-A : 4–27 CM

20MIL CODE39 : 7.5–35 CM

6.7MIL PDF417 : 3.5–9 CM

10MIL DATAMATRIX: 3–10 CM

15MIL DATAMATRIX: 3–17 CM

20MIL QR : 3–21 CM

Scanning Speed 150scans/sec
Scanning Method Manual
Scanning Area 5 * 5 cm² — 30 * 30 cm²
Prompting Mode Buzzer ,indicator light (LED)
Printing Contrast No lower than 35%
Scanning Angle Roll0-360°、pitch±65°、yaw±60°
Environment Parameters
IP Grade IP 54
Operating Temperature 0 to 50 ºC / 32 to 122 ºF
Storage Temperature 0 to 50 ºC / 32 to 122 ºF
Operating Humidity 5 – 95% (non-condensing)
ESD Protection 15KV air discharge
Shock Resistance 1.5 free fall on concrete surface
