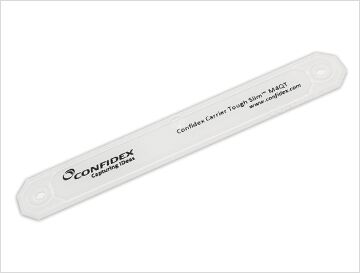

Confidex Carrier Tough Slim™ RFID Tag
Confidex Carrier Tough Slim™ RFID Tag
Confidex Carrier Tough Slim™ RFID Tag
, ,

Confidex Carrier Tough Slim™ RFID Tag

Confidex
Availability:

Pre Order - 2 to 4 weeks
Add to Wishlist

The new Confidex Carrier Tough Slim™ RFID tag is a durable tag solution for reliable plastic container and returnable transit item tracking.

  • Designed to survive even the harshest environments.
  • Almost immune to scratching and beating, making it an ideal choice for RTI (returnable transit item) use.

Features

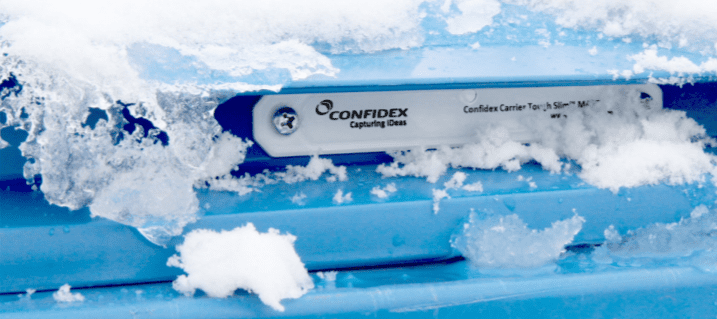

It’s a tough world out there. Your returnable plastic containers do a lot of traveling, but like carrier pigeons, they always come back to you. Or so they should. In a world full of scratching, beating, chemicals, washing, extreme temperatures and who knows what, make sure your RFID tag can take it. With Confidex Carrier Tough Slim™, your container tracking just keeps on going. More durable than ever.

Takes a thousand washes

Confidex Carrier Tough Slim™ endures repeated washings at high temperatures while still providing reliable automated real-time tracking.

Make it personal

Compared to rubber RFID tags, Confidex Carrier Tough Slim™ can be personalized. Your printed visual information stays safe and readable sealed inside the polycarbonate, ensuring the visibility of your logo, barcodes, text or other markings.

The choice for industry 4.0

The new Confidex Carrier Tough Slim™ is even tougher than its predecessors. The new material makes it more flexible and less likely to shatter when bent. Also the installation is now easier.

Quick Specs

Technology: UHF (C1G2)
Type: Global
Size: 122 x 18 x 2 mm
Memory: 128 bit EPC + 512 bit
Read Range: up to 12 m (40 ft)
Temperature: -35°C to + 85°C
IP Class: IP68



Downloads

Brochure

ELECTRICAL SPECIFICATION

Device type:
Class 1 Generation 2 passive UHF RFID transponder
Air interface protocol:
EPCGlobal Class1 Gen2 ISO 18000-6C
Operational frequency
Global 865-928 MHz
IC type:
Impinj Monza 4QTTM
Impinj Monza 4ETM (upon special request)
Memory configuration:
With Monza 4QT: EPC 128 bit; User 512 bit; TID 96 bit
With Monza 4E: EPC 496 bit; User 128 bit; TID 96 bit
EPC memory content:
Unique number encoded as a default
Read range (2W ERP)*:
On plastic up to 12 m / 40 ft
Applicable surface materials*:
Non-metallic surfaces.

MECHANICAL SPECIFICATION

Tag encapsulation:
Scratch and bending-resistant engineering plastic
Background adhesive:
High performance acrylic adhesive specifically for low
surface energy plastics
Weight:
1 g
Delivery format:
Single
Amount in box:
Inner box 100 pcs
Outer box 500 pcs

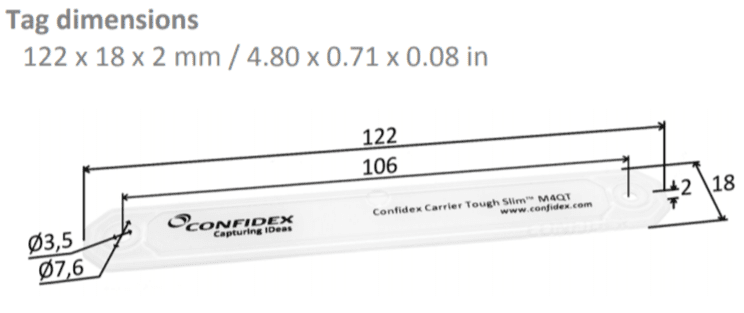

Tag dimensions:
122 x 18 x 2 mm / 4.80 x 0.71 x 0.08 in

ENVIRONMENTAL SPECIFICATION

Operating temperature:
-35°C to +85°C / -31°F to +185°F
Ambient temperature:
-35°C to +85°C / -31°F to +185°F
Water resistance:
IP68
Washing resistance:
Excellent tolerance against industrial washing processes
Chemical resistance:
No physical or performance changes in:
– 168h Salt water (salinity 10%) exposure
– 168h NaOH (10%, pH 13) exposure
– 168h Motor oil exposure
– 168h Sulfuric acid (10%, pH 2) exposure
Storage condition:
1 year in +20°C / 50% RH (shelf life for adhesive)
Expected lifetime:
Years in normal operating conditions

PERSONALISATION OPTION

Pre-encoding
• Customer specific encoding of EPC or user
memory. Locking permanently or with password.
Customized printing
• Customer specific layout



Applications
  • Manufacturing
  • Automotive
  • Construction And Mining
  • Logistics And RTI Operation
  • Healthcare
