Confidex Carrier Tough II™ RFID Tag

Confidex
Availability:

Pre Order - 2 to 4 weeks

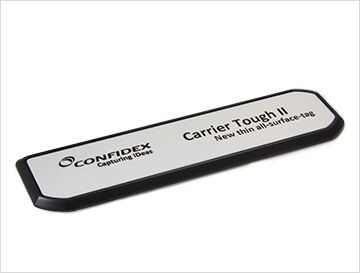

Confidex Carrier Tough II™ is an ultra-thin, high performing all-surface-RFID tag for returnable transit items or industrial assets.

Confidex Carrier Tough II™ provides an effective solution for manufacturers, food processors, distributors or RTI pool owners to manage their assets in transit. The use of RFID tags provides better visibility and control over supply chains, improves security of goods during distribution, and enables automated logistics or lean manufacturing processes.

Features

Confidex Carrier Tough II™ provides an effective solution for manufacturers, food processors, distributors or RTI pool owners to manage their assets in transit. The use of RFID tags provides better visibility and control over supply chains, improves security of goods during distribution, and enables automated logistics or lean manufacturing processes.

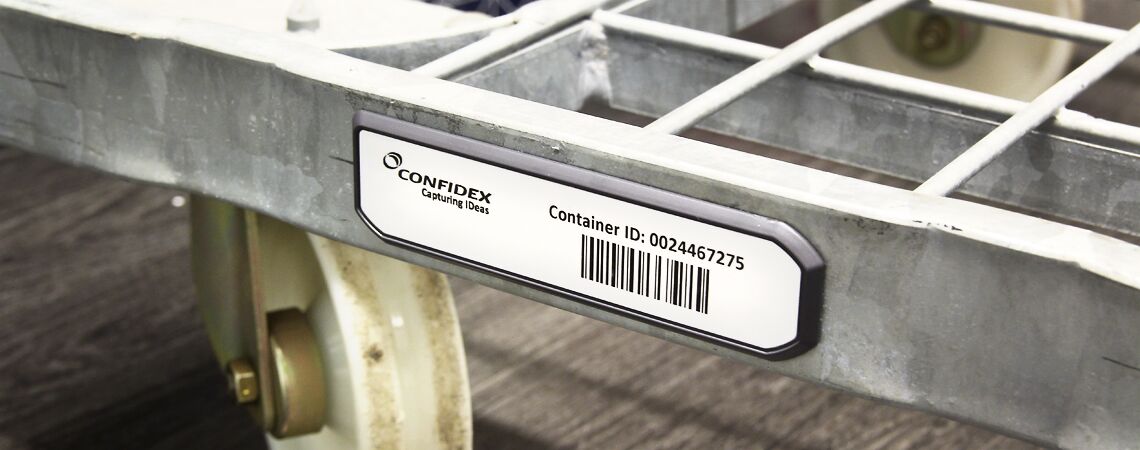

Carrier Tough II offers an easy-to-use solution for tagging various kinds of industrial assets or returnable transit items – like roll cages, pallets, plastic crates and totes. Due to its unique design, Carrier Tough II performs well both on metal surfaces as well as on other materials.

All customer specific visual information, such as barcodes or company logos for example, are protected with cover film which tolerates typical industrial washing processes. The tag is provided with highly durable background adhesive, also designed to be used in harsh environments

Quick Specs

Technology: UHF (C1G2)
Type: ETSI FCC
Size: 115 x 30 x 3,9 mm
Memory: 128 bit EPC + 512 bit
Read Range: up to 12 m (39 ft)
Temperature: -35°C to + 85°C
IP Class: IP68



Downloads

Brochure

ELECTRICAL SPECIFICATION

Device type:
Class 1 Generation 2 passive UHF RFID transponder
Air interface protocol:
EPC Class1 Gen2 ISO 18000-6C
Operational frequency:
EU 865 – 869MHz
US 902 – 928 MHz
IC type:
Impinj Monza 4QTTM
Impinj Monza 4ETM (upon special request)
Memory configuration:
With Monza 4QT: EPC 128 bit; User 512 bit; TID 96 bit
With Monza 4E: EPC 496 bit; User 128 bit; TID 96 bit
EPC memory content:
Unique number encoded as a default
Read range (2W ERP)*:
On metal up to 12m / 40ft
Other materials up to 11m / 36ft
Applicable surface materials*:
All surfaces.

MECHANICAL SPECIFICATION

Tag materials:
High-quality engineering plastic. By default delivered
without printing. Personalized printing protected with
cover film.
Background adhesive:
High-performance acrylic adhesive specifically for metal and painted metal surfaces
Weight:
12 g
Delivery format:
Single
Amount in box:
50 tags

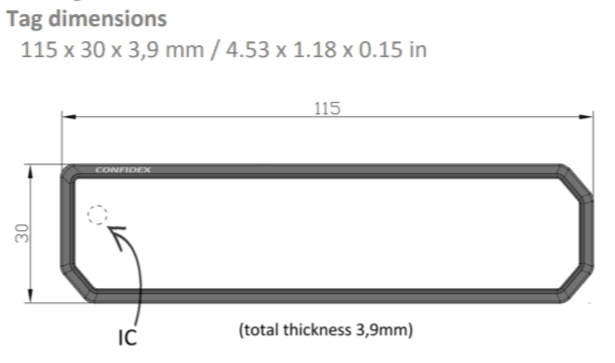

Tag dimensions:
115 x 30 x 3,9 mm / 4.53 x 1.18 x 0.15 in

ENVIRONMENTAL SPECIFICATION

Operating temperature:
-35°C to +85°C / -31°F to +185°F
Ambient temperature:
-35°C to +85°C / -31°F to +185°F
Water resistance:
IP68
Washing resistance:
Tolerates industrial washing with standard solvents.
Washing process should be tested in final application.
Chemical resistance:
No physical or performance changes in:
– 168h Sulfuric acid (10%, pH 2) exposure
– 168h Motor oil exposure
– 168h Salt water (salinity 10%) exposure
– 1h NaOH (10%, pH 13) exposure
Acetone should be avoided
Storage condition:
1 year in +20°C / 50% RH (shelf life for adhesive)
Expected lifetime:
Years in normal operating conditions

PERSONALISATION OPTION

Pre-encoding
• Customer specific encoding of EPC or user
memory. Locking permanently or with password.
Customized printing
• Customer specific layout including logo, text,
numbers, barcodes etc.
• Printing is protected with additional cover film.

Video

Applications
  • Manufacturing
  • Automotive
  • Construction And Mining
  • Logistics And RTI Operation
