iData 50 Mobile Computer


Pre Order - 2 to 4 weeks

iData 50 provides professional and outstanding automatic data identification and collection,
such as 1D/2D barcode, NFC, GPS and camera to help users collect field data accurately and rapidly. With industry leading configuration and professional system optimization design, iData 50 provides enterprise users with stable and fast device operation, enabling them working in an efficient and easy manner anytime and anywhere.

  • OS: Android 6.0
  • CPU: 1.3 GHz Quad Core Processor
  • Memory: 16GB ROM + 2GB RAM
  • Connection: 5G WIFI, 4G/3G/2G & Bluetooth 4.0
  • Display: 4.7 inch + 1280 x 720 high resolution
  • Camera: 8MP
  • Battery: 3300mAh Rechargeable Battery
  • Barcode Scanner: 1D Laser or 2D Area imager



Faster and more stable wireless data transmission

  •  4G network (TD-LTE/FDD-LTE): It provides 4G network for faster data transmission on mobile applications.
  • 5G Wi-Fi: It provides 5G Wi-Fi to increase transmission rate by 300% with dual transmission switch to solve congestion, conflict and interference problems

More powerful and efficient data collection

  • It supports the most powerful barcode scan engine, NFC, GPS, camera and the other AIDC methods to improve accuracy and speed of data collection

Portable and easy to use

  • 4.7-inch HD screen with full viewing angle and touch panel to make work efficient: Suitable for one hand operation with ultra-high-definition display of 1280*720 resolution. The touch screen uses industrial-grade ultra-sensitive capacitive screen to support gloves and wet hand operation.
  • Advanced Android OS + Quad-core CPU: It has Android 6.0 operating system with quad-core processor to provide top speed operation platform.
  • Portable: It weighs only 230g including the battery, which makes it the most portable device in the industry. It can be easily kept in a pocket and be used for long time without fatigue with its ergonomic design.

  • Logistics
  • Warehousing
  • Retail
  • Healthcare
  • Manufacturing
  • Utilities and Public Service
  • Others

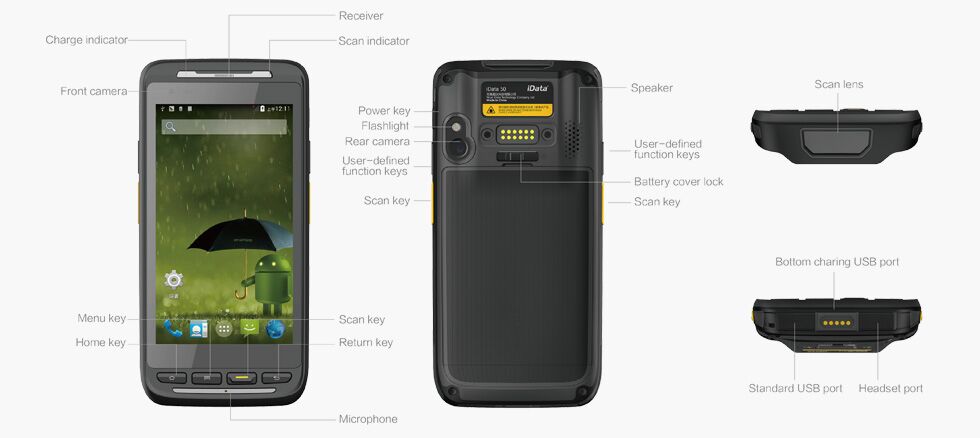

System Configuration

CPU: High-performance quad-core  1.3 GHz processor
Operating System: Android 6.0
Memory: 16 GB ROM+2 GB RAM
Expansion Slot: Mini SD card, up to 32 GB
Display: 4.7- inch, 1280 x 720 High resolution
Touch Panel: Industrial-grade capacitive touch panel (supporting operation with gloves)
Camera(optional): 8 MXP camera in the back side, autofocus lens, LED flash
Exit Window: Corning® Gorilla® glass
Keypad: 4 front keys, 4 side keys , Power key
Battery: 3.7 V 3300 mAh rechargeable lithium polymer battery
Audio: Built-in microphone /Mini USB/Headphone connector
Notification: Vibrator alerts/LED/Audio notification
Vibration Motor: Built-in programmable vibration motor
Sensor: G-Sensor

Structural Parameters

Dimensions (LxWxD): 150 mm×73.5 mm×16 mm (head 24mm thickness)
Weight: 230 g (standard battery included)

Communication Transmission

Wireless WAN
(Network frequency):
GSM: 850MHz/900MHz/1800MHz/1900MHz; CDMA2000: BC0(800MHz)

TD-SCDMA: Band34/39; WCDMA: 850MHz/1900MHz/2100MHz

TDD LTE: Band38/39/40/41; FDD LTE: Band1/3

Wireless WAN
(Data service):
Wireless LAN: Wi-Fi 802.11 a/b/g/n (Dual-band Wi-Fi: 2.4G+5G)
Bluetooth: Bluetooth 4.0
GPS: Supporting GPS/AGPS

Operating Environment

Development Tools: Android SDK+ JDK+Eclipse
Programming Language: Java
Operating Temp.: -10℃ to 50℃ (14℉ to 122℉)
Storage Temp.: -20℃ to 60℃ (-4℉ to 140℉)
Relative Humidity: 0 to 95% (non-condensing)
Drop Specification: 1.2-meter drops to concrete ground
Sealing: IP65
Electrostatic Discharge: Conforms to ± 15 kV air discharge, ± 8 kV direct discharge

1D Laser Scanner

Optical Resolution: ≥4 mil
Scan Depth of Field: 3.81 cm – 60.98 cm
Scan Angle: 47°± 3° (Standard)
Scan Speed: 102 ± 12 scans/sec. (Bidirectional)

1D / 2D Area Imager

Optical Resolution: ≥3 mil
Scan Angle: Omnidirectional
Scan Speed: 300 scans/sec.


Frequency: 13.56 MHz
Reading Distance: Within 10 mm
Protocol: ISO14443A/14443B/15693

Input/Output Ports

USB Port: 1 (Micro USB port)
Charger Port: 1 (Charging interface at the bottom)
Headset Port: 1


Standard: Battery, Charging stand, Hand strap
Optional: 1-slot charging & communication stand, Power adapter, Bottom charging cable
