Sale!
, , , ,

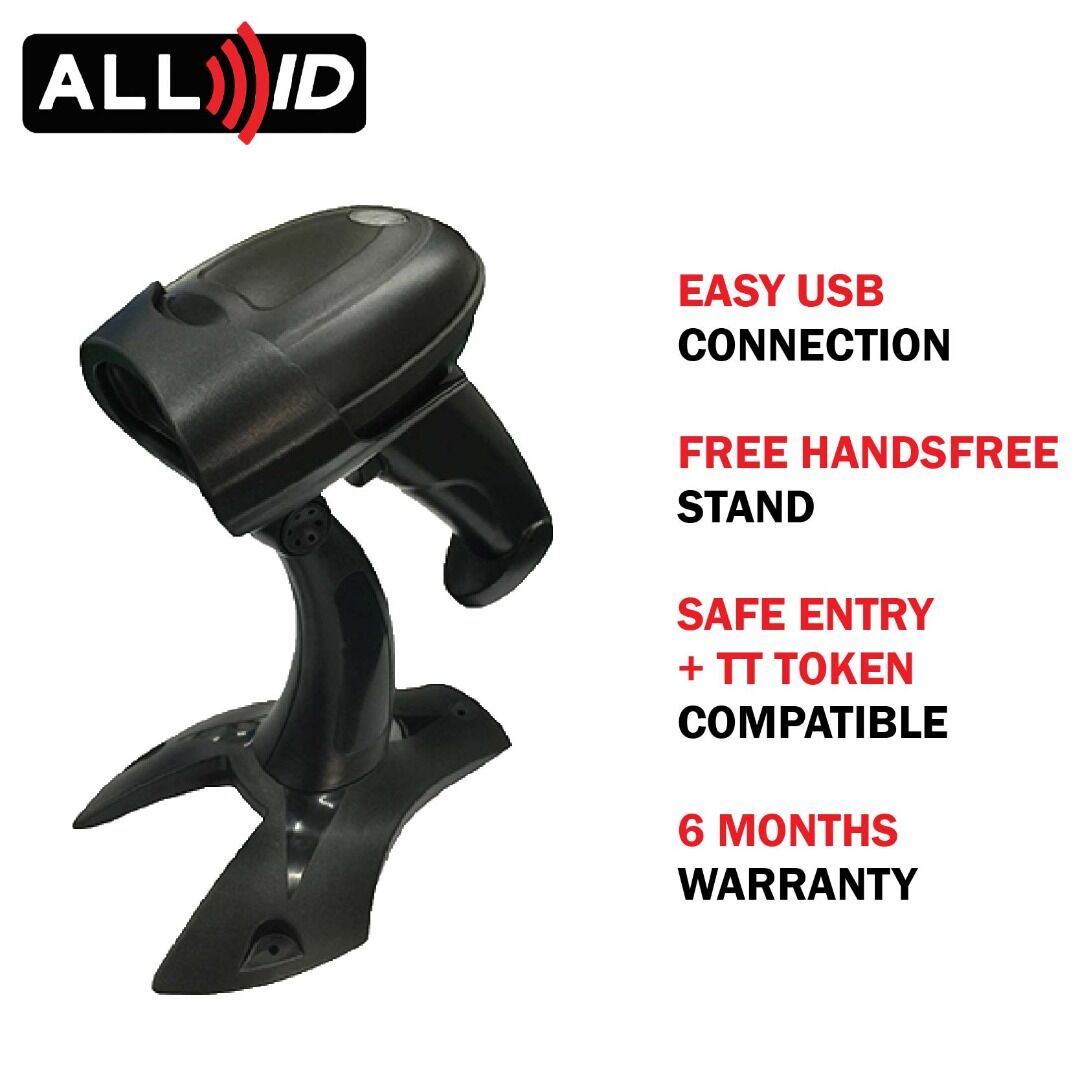

ALLID EC323A 2D/QR barcode scanner

All ID
Availability:

17 in stock
Add to Wishlist
Overview
  • Comes with stand
  • Highly sensitive image sensor (can read on electronic screen)
  • Able to read all standard 1D barcodes and 2D barcodes
  • High decoding ability to read damaged or substandard barcodes.
  • Rugged design (IP 54) which withstand multiple 1.8m drops.
  • Ideal for a wide range of applications which requires 2D barcode scanning, such as mobile couponing scanning, warehousing and logistics document control.
  • 6 months warranty *no on-site support (bring in)





RM399.00 RM435.00

17 in stock

Overview
  • Highly sensitive image sensor (can read on electronic screen)
  • Able to read all standard 1D barcodes and 2D barcodes
  • High decoding ability to read damaged or substandard barcodes.
  • Rugged design (IP 54) which withstand multiple 1.8m drops.
  • Ideal for a wide range of applications which requires 2D barcode scanning, such as mobile couponing scanning, warehousing and logistics document control.

Downloads

Brochure

Weight 0.6 kg
Performance
Processor 32 bit
Scan mode handheld
Alarm mode Red light alarm, Buzzer alarm
Resolution 640 (horizontal) x 480(vertical),256 gray levels
Scan angle 45°(horizontal);30°(vertical)
Scan speed 250 mm/sec
Scan depth of field 5 mil(Code 39)              90~120mm

13 mil(UPC/EAN)           30~305mm

20 mil(Code 39)            30~450mm

PDF417(10mil)              50~225mm

Datamatrix(10mil)         52~240mm
Barcode type Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN
ELECTRICAL
Voltage DC+5V±5%
Operating current 60mA(working); 40mA(standby); 300mA(operating)
Interfaces RS232,USB(MS+MAC)
Light level Visible Red light 630+10nm
ENVIRONMENTAL
Operating temperature -20 ℃ ~60℃
Storage temperature -30 ℃ ~70℃
Humidity 5% to 95% (Non-condensing)
Light environment The normal direct sunlight  indoor and outdoor
Drop Designed to withstand 1.8m drops
IP degree IP54
RELIABILITY
High temp. 60 ℃ (140 ℉)
Low temp. -20 ℃ (-4 ℉)
Cycle time 30 minutes for high temp.,30 minutes for low temp.
Cycles 24 cycles
Mechanical Shock 2000G, 0.7ms, 3 axes
PHYSICAL
Dimensions (LxWxH) 170mm×100mm×75mm
Weight 150g (without cable)
Material ABS+EVA
Color Black
Accessories Scanner, manual, cable
