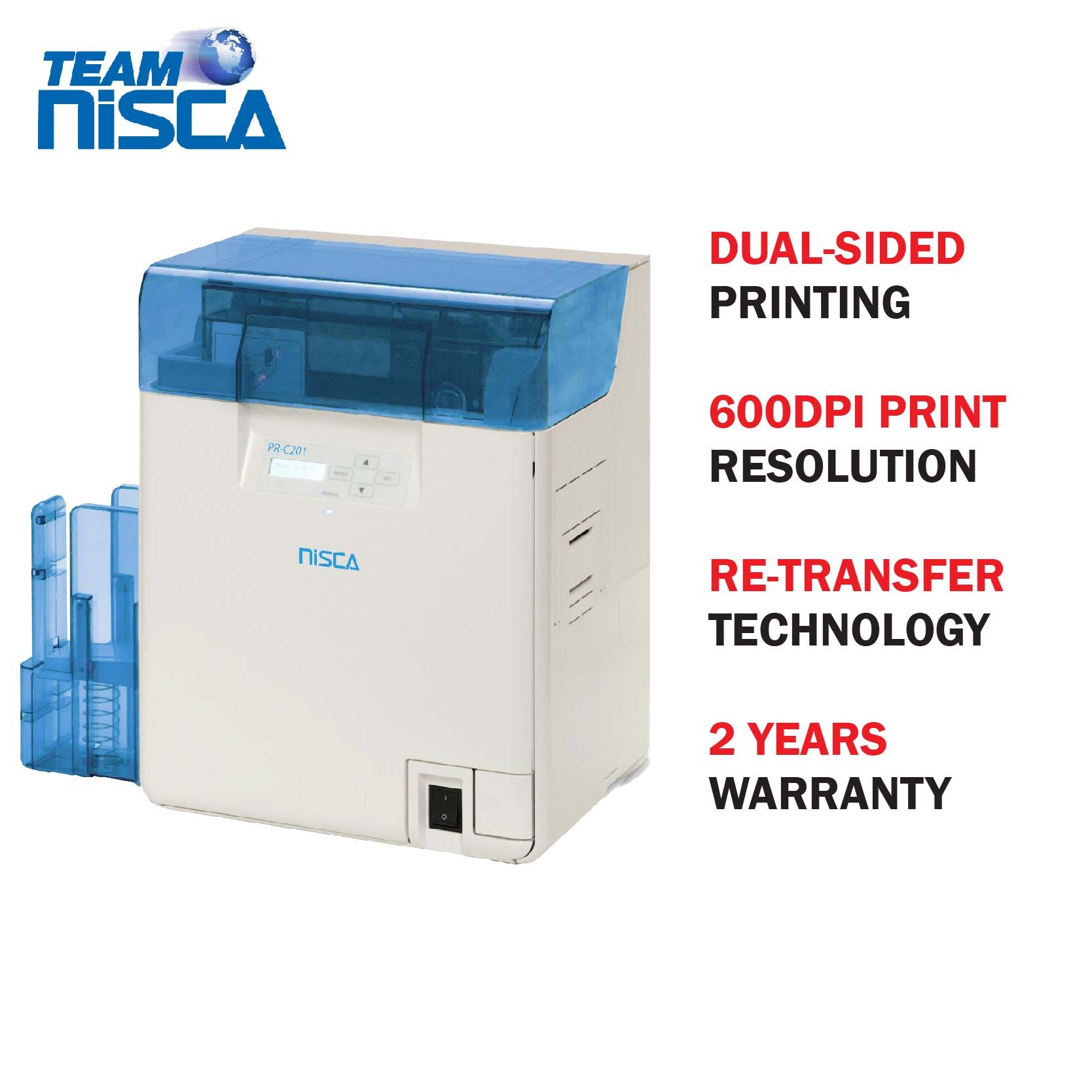

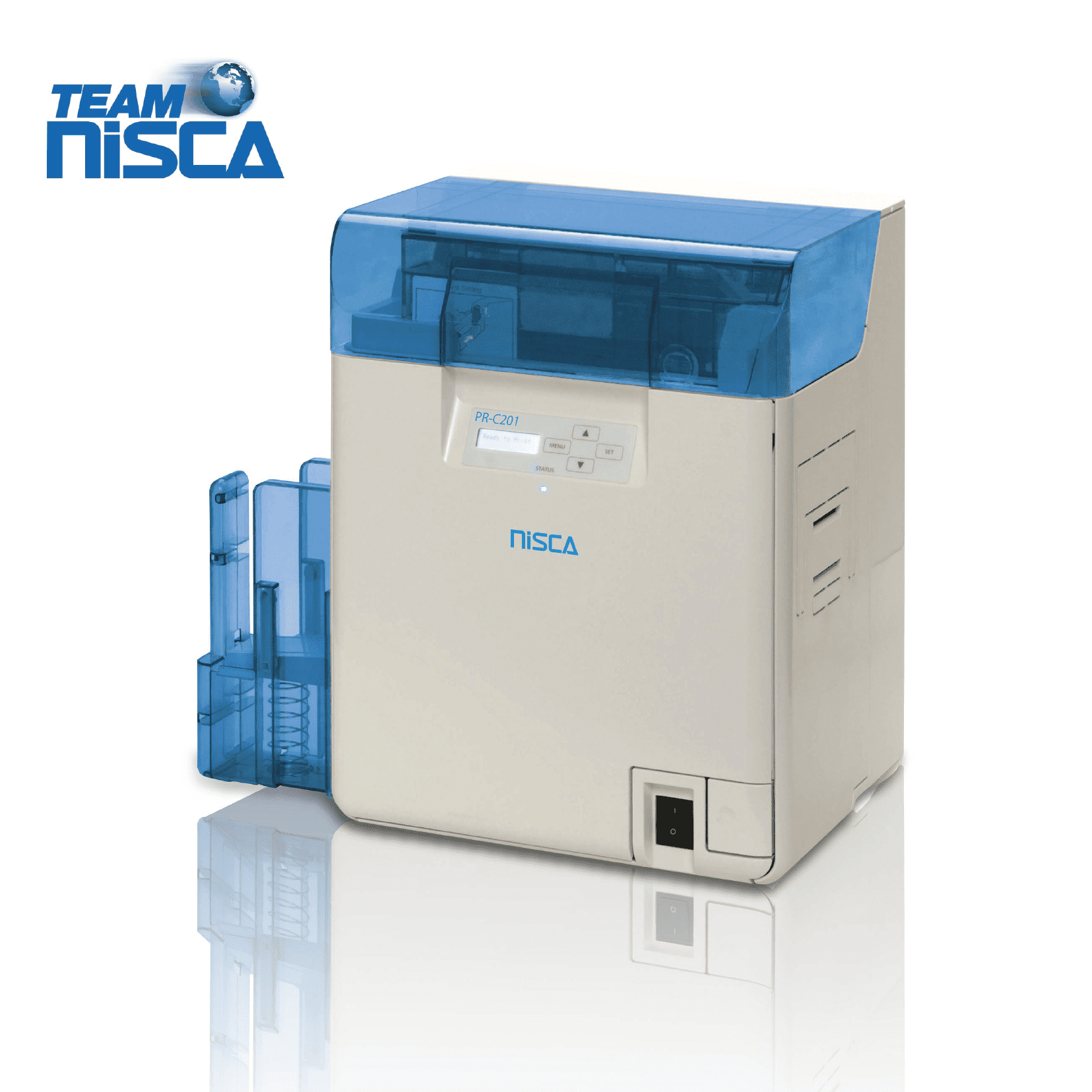

Nisca PR-C201 Retransfer Card Printer

The Nisca PR-C201 offers a high speed, 600 dpi, 24-bit color and prints at the astounding speed of over 145 cards/hour! The PR-C201 comes available with an optional encoder, mag encoder, contact encoder and/or contactless encoder.

Description

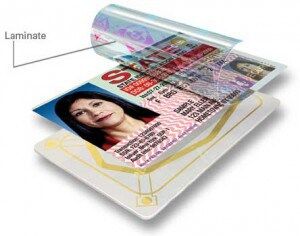

NiSCA’s retransfer printing technology allows you to print FULL COLOR, FULL BLEED IMAGES in brilliant true color. The retransfer process uses dye sublimation to print a high-resolution image in reverse directly onto the film base. The printer then thermally transfers the image and film onto the card surface through heat and pressure, thermally bonding it to the card surface.

Ideal For:

  • Corporate ID Cards
  • Access Control Cards
  • Government ID’s
  • Drivers Licenses
  • Transportation/Event Ticketing
  • Print Method: Dye-sublimation retransfer printing
  • Resolution: 600DPI
  • Input: R/G/B 256 level
  • Output: Y/M/C/UV 256 level
  • Printing area: Over the edge
  • Printing speed (Single printing: YMCK): More than 25.0s full color YMCK (145 cards/hr)
  • Printing speed (Double printing: YMCKK): More than 40.0s full color YMCKK (90 cards/hr)
  • Feeder capacity: 250 cards (if card thickness is 0.76mm)
  • Card exit capacity: 250 cards (if card thickness is 0.76mm)
  • Card thickness: 0.25 to 1.0 mm
  • Card size: ISO7810
  • Card material: PVC, PET, PC, ABS (Except PVC cards need prior confirmation )
  • Display: LCD Panel (with back light), LED, Operation button
  • Dimensions: 17.13(H) x 13.39(W) x 12.60(D) Inches (435(H) x 340(W) x 320(D)mm)
  • Weight: Less than 44 lbs. (20kg)
  • Power Source: 90 – 125VAC 220 – 240VAC 50/60Hz
  • Power consumption: Less than 3A (100V)
  • Operating temperature: 15 to 35°C – 20 to 80% humidity
  • I/F: USB and Ethernet 10 Base-T, 100 Base-T
  • Drivers: XP, Vista, Win 7, Win 8 (32 & 64 bits)
  • Ribbon capacity: 500 images / roll (YMCK ribbon)
  • Film Ribbon: Clear Retransfer, Holographic Retransfer
  • Ink Ribbon: YMCK, YMCKK, YMCKH (for except PVC Card) / YMCKI (for smart card), YMCFK (UV ink)
  • Agency listing: UL/CSA/CE/FCC
  • MTBF: 100,000 prints
  • Print head life: Limited lifetime print head warranty**
  • Extendibility: 2 USB HUBS (inside printer)
  • Memory size: 64MB
  • Laminator: NiSCA dedicated retransfer laminator
  • Encoder: Mag Encoder, Contact Encoder, Contactless Encoder

*Speci cations subject to change without notice

** Contact Team NiSCA for details
