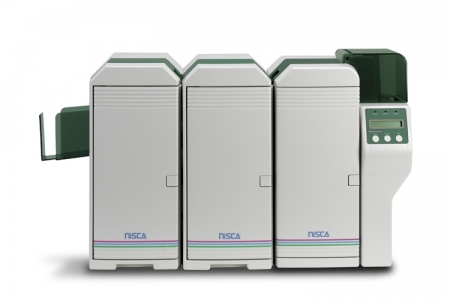

The PR5302 Heat Roller (laminator) is a free standing laminator that is designed for operation with the PR5300 Nisca ID Card Printers. The unit offers high-speed lamination for standard CR-80 cards and offers a state of the art RS-422 high-speed communication port interfaces with the printer and allows the printers firmware and driver to optimally configure the unit for a variety of laminate materials.
Features of the PR5302 include sensitive position adjustmentsettings to optimally locate the laminate on the ID card. Additionally, the PR5302 offers a “sleep” mode so the unit does not remain at operatingtemperature while not in use. This feature saves you money on your electric bill andincreases the life of the heatlamp unit.
- Printing system: Heat transfer printing
- Print media: PVC
- Media size: CR-80 (54x86mm)
- Print area: Entire card surface
- Printing speed: 30sec max
- Transfer ribbon: TEAMNisca protective / holographic material
- Communication: RS422, printer to heat roller
- Power source: AC Power source – AC100/120v 50/60Hz
- Power source: AC Power source – AC 200/240v 50/60Hz.
- Dimensions: 400 x 180 x 300mm (h x w x l)
- Weight: 10kg max
